E6.0 · Electrical Panels Schedule Home2 Suites · Bradenton
TAKEOFF / ACTUAL PLAN COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT HVAC / ELECTRICAL NOTES
QUANTITIES / DIMENSIONS
Select a row to show its exact source basis.
ASSEMBLIES / ACCESSORIES
L5.A
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 5TH FLOOR. 42 complete circuit rows.
L4.B
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 4TH FLOOR. 42 complete circuit rows.
L5.B
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 5TH FLOOR. 42 complete circuit rows.
L3.A
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 3RD FLOOR. 42 complete circuit rows.
L4.A
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 4TH FLOOR. 42 complete circuit rows.
L3.B
120/208V, 3PH, 4W; 250A COPPER bus; 250A M.L.O; 22kA AIC; fed from MDP; STORAGE 3RD FLOOR. 42 complete circuit rows.
NOTES / REFERENCES
1. CONTRACTOR SHALL PROVIDE A PERMANENTLY AFFIXED LABEL WITH THE MAXIMUM FAULT CURRENT PER ARTICLE 110.24. THE LABEL SHALL INCLUDE THE DATE THE FAULT-CURRENT CALCULATION WAS PERFORMED AND BE OF SUFFICIENT DURABILITY TO WITHSTAND THE ENVIRONMENT INVOLVED. THE LABEL SHALL BE 2"X3" IN SIZE AND SHALL BE BLUE LETTERING ON A CONTRASTING BACKGROUND.
2. CONTRACTOR TO VERIFY FINAL CURRENT VALUES FROM ELECTRICAL UTILITY COMPANY AND PROVIDE AIC PROTECTION ACCORDINGLY.
3. AIC RATINGS OF ALL THE PANELS & BRANCH BREAKERS SHALL MATCH THE FAULT CURRENT OF THE TRANSFORMER.
SOURCE

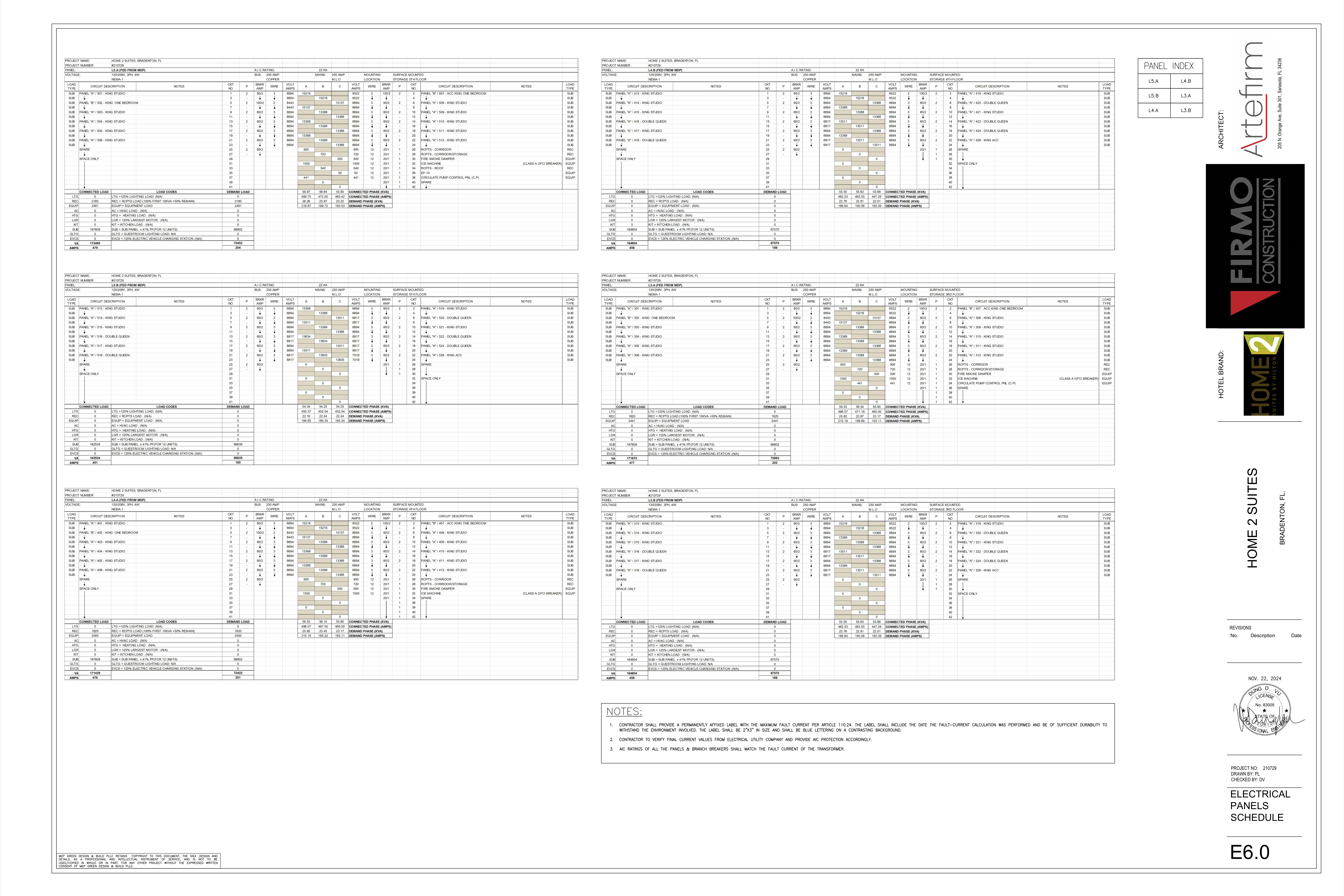

E6.0 · Engineering PDF page 53
Issued 11.22.2024 · NTS / SCHEDULE · NO PLAN-SCALE LF
ELECTRICAL PANELS SCHEDULE
BROKEN CHAINS & PLAN ISSUES
1 · High
L4.B circuit 2 and L3.B circuit 2 are described as KING STUDIO but are printed with 8,522 VA, 100/2 breaker and #2 wire, matching the accessible one-bedroom feeder values used on A-panels. Preserve as printed and verify room type/panel designation.
2 · High
L4.B/L3.B DOUBLE QUEEN and KING ACC feeders on the right side are printed at 6,694 VA, unlike L5.B where DOUBLE QUEEN is 6,817 VA and KING ACC is 7,018 VA. Verify whether L3.B/L4.B values are stale or descriptions are wrong.
3 · Medium
22 kA AIC is stated, but sheet notes require final utility fault current verification and equipment/branch ratings to match transformer fault current.
4 · Medium
MDP upstream protection, transformer fault current, guestroom panel schedules, and mechanical equipment schedules are outside this sheet; cross-sheet compliance is not certified here.
5 · Medium
Rooms 323/325, 423/425 and 523/525 do not appear in B-panel room sequences. This may be architectural numbering, but cannot be resolved from E6.0 alone.
6 · Low
Down arrows in description/breaker/wire cells are preserved literally as continuations. Omitted values were not propagated into blank cells.
7 · Low
Several SPARE and SPACE ONLY blocks use arrows across subsequent rows and show zero phase cells. Exact future breaker provisioning should be confirmed from the issued panel schedule rather than inferred.
8 · Low
Summing the printed integer row VA values on L5.A, L3.A and L4.A is 1 VA higher than each printed connected-total VA. Phase-kVA totals agree with the printed connected totals to schedule precision; preserve the published totals and treat the 1 VA differences as rounding.
