E5.2 · Lighting Cut-Sheets Home2 Suites · Bradenton
TAKEOFF / ACTUAL PLAN COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT HVAC / ELECTRICAL NOTES
QUANTITIES / DIMENSIONS
Select a row to show its exact source basis.
ASSEMBLIES / ACCESSORIES
SA / SB · upper definition
JPL-1 / T2 / 16L / 1050 mA (code 1) / 30K8 / UNV / HSS. Mounting, color, controls and lens are unselected.
SA1 / SB1 / SC1 · lower definition
JPL-1 / T2 / 16L / 1050 mA (code 1) / 30K8 / UNV with no option selected. Mounting, color, controls and lens are unselected.
Complete manufacturer evidence
Both repeated triptychs retain form/function, construction, finish, warranty, Buy American, electrical, controls, option, optics and listing language. Product-literature logos are not project certifications.
NOTES / REFERENCES
Ordering Guide Note 1. Consult Factory for Lead Time. Consult Factory for 90 CRI Requests.
Ordering Guide Note 2. For Round Pole Specify RPA4 or RPA5
Ordering Guide Note 3. Standard finish is stainless steel. Can be painted to match fixture.
Ordering Guide Note 4. Universal Voltage 120-277
Ordering Guide Note 5. HSS not applicable with Nema 2.
Ordering Guide Note 6. 3000K or lower, with fixed mounting options only, must be selected to meet International Dark-Sky Association certification.
Ordering Guide Note 7. Glass Lens: Low iron glass, fully tempered per ANSI C1047 (QCH-2201-37)
Ordering Guide Note 8. HAL Lens: Clear Soda-Lime-Silica Float Glass, Yellow (Spectrum Yellow Smooth 161S), Annealed, 1/8 inch
Ordering Guide Note 9. Please contact Factory for Custom Control Integration requests (nLight, NX, WaveLinx, Crestron, DMX/RDM, Synapse, Casambi, Dali II, Avi-On, or other control systems)
Ordering Guide Note 10. Turtle Safe
Ordering Guide Note 11. Consult factory for all BAA/TAA/BABA requests
Ordering Guide Note 12. Consult Factory for Lead Time
Ordering Guide Note 13. Not Available above 1000mA
Ordering Guide Note 14. Contact Factory
SOURCE

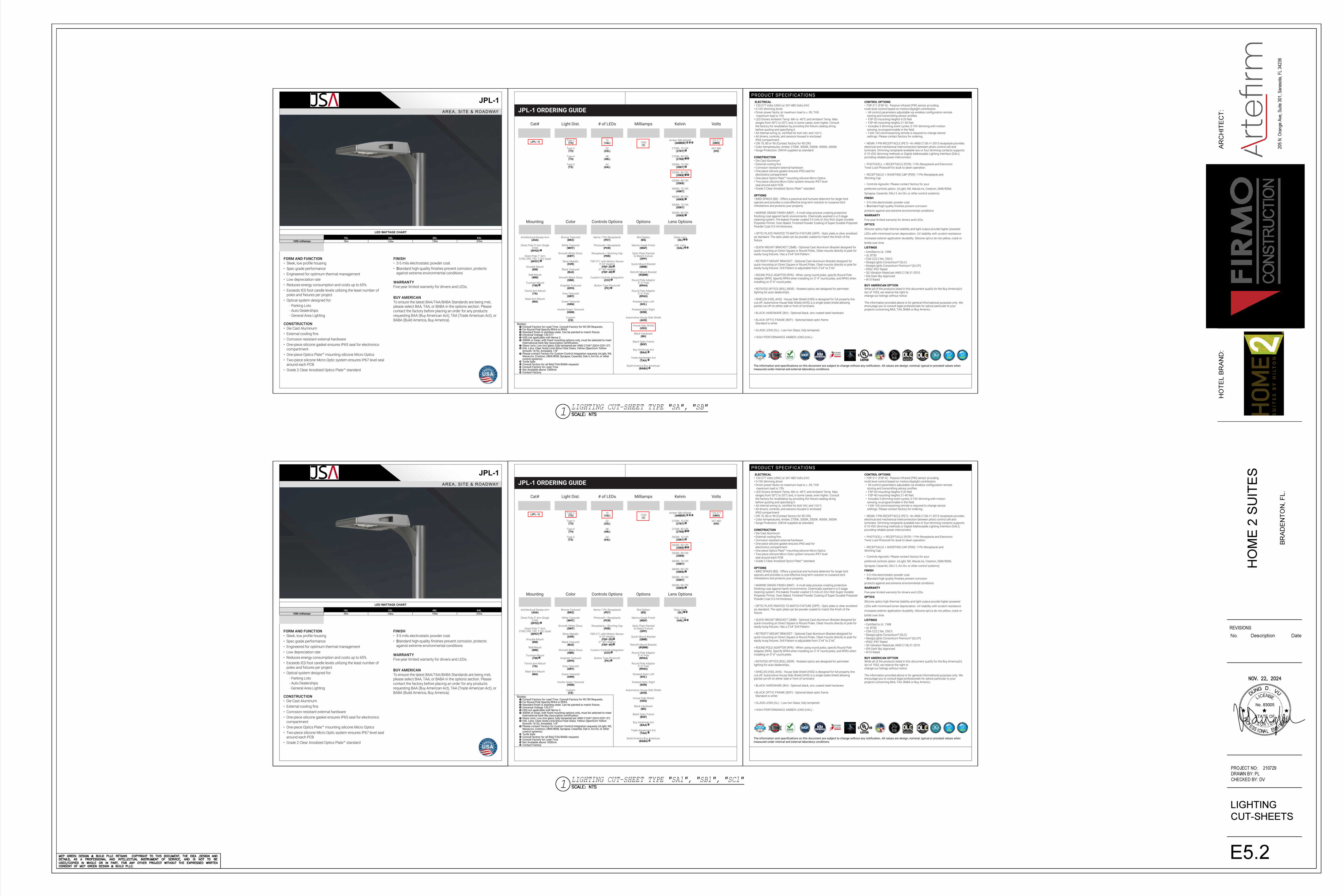

E5.2 · Engineering PDF page 52
Issued 11.22.2024 · NTS / SCHEDULE · NO PLAN-SCALE LF
LIGHTING CUT-SHEETS
BROKEN CHAINS & PLAN ISSUES
I1 · Critical Selection Conflict
Upper types SA/SB select T2 and HSS, while Ordering Guide Note 5 states HSS is not applicable with Nema 2. Resolve the distribution/shield combination before ordering.
I2 · Product Family Conflict
E5.1 schedule labels say JPL-1, E5.2 product literature says JPL-1, but both E5.1 description strings say NV-1.
I3 · Cct Cri Conflict
Both E5.2 variants select 30K8 (3000K, 80 CRI); E5.1 photometric descriptions use 40K and 40K7 (4000K variants).
I4 · Lumen Gap
E5.1 uses 6832 lm and 4252 lm, but E5.2 gives no lumen output for the selected configurations; photometric output cannot be reconciled from the cut sheet.
I5 · Incomplete Order Code
Mounting, color, controls and lens are unselected in both ordering guides; the lower variant also has no other option selected. A procurement-ready catalog string cannot be formed.
I6 · Dark Sky Qualification Gap
E5.2 selects 3000K, and Note 6 requires a fixed mounting option to meet IDA certification, but no mounting option is selected. The printed IDA approval mark alone does not validate the project selection.
I7 · Voltage Gap
E5.2 selects UNV for the HSS variant, but the E5.1 HSS description string omits a voltage code.
I8 · Duplicate Detail Number
Two distinct E5.2 cut-sheet details are both identified as detail 1, making a generic 1/E5.2 reference ambiguous.
I9 · Clipped Definition
The HIGH PERFORMANCE AMBER LENS (HAL) option heading ends with a dash and has no description in either repeated product-specification instance.
I10 · Procurement Certification Gap
BAA/TAA/BABA options are offered and manufacturer text requires selection/factory coordination, but none is selected. Product-literature eligibility is not project-specific compliance.
I11 · Revision Gap
The sheet revision table is blank; no cut-sheet issue/revision date is printed beyond the project title-block seal date.
I12 · Quantity Boundary
E5.1 quantities 12 and 11 and E5.0 plan types are coordination evidence only. E5.2 itself contains no installed quantity and must not be used as a fixture count.
