C-7 · Erosion & Sediment Control Details 2 Bradenton Hotel and Restaurant
TAKEOFF / ACTUAL SOURCE MARKS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
MEASURED QUANTITIES
This NTS detail has no project plan-length takeoff.
PRINTED DIMENSIONS / REQUIREMENTS
Upright: minimum 2 x 2 lumber
Horizontal: minimum 1 x 4 lumber
Post: at least 4 FT long
Post embedment: minimum 1 FT
Post above grade: minimum 3 FT
Barrier location: entire drip line
SOURCE

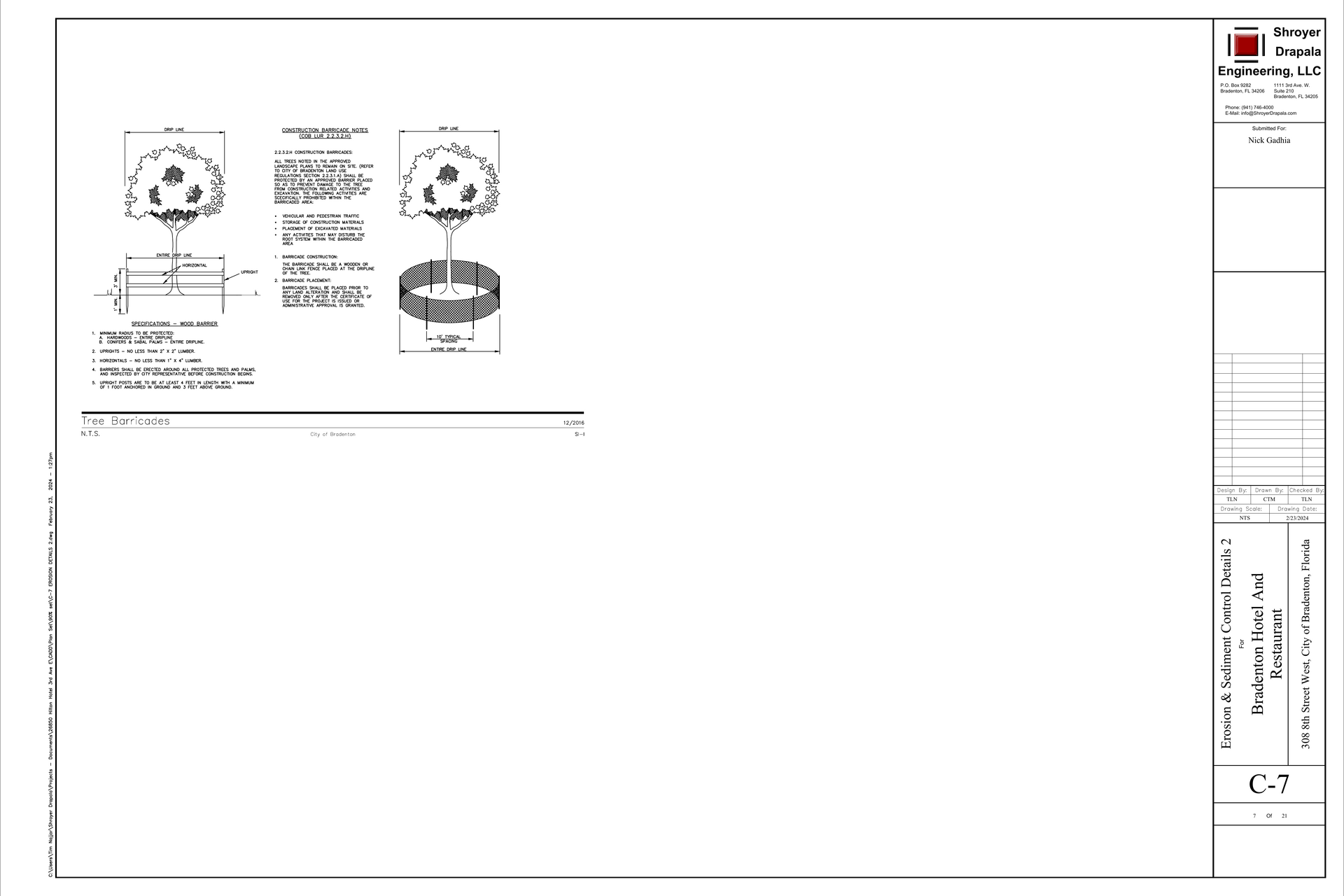

C-7 · Civil PDF page 7
Issued 02.23.2024 · NTS
EROSION & SEDIMENT CONTROL DETAILS 2
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
The civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. Confirm the governing parcel and address before bid documents and RFIs are issued.
C7-02 · Tree quantity is not plotted on C-7
This NTS detail does not identify which trees remain or the number of barricades; reconcile with landscape/tree-removal plans.
C7-03 · Sheet-total conflict
The title block prints Sheet 7 of 21, while the cover index identifies a 20-sheet civil set.
C7-04 · Code reference needs edition confirmation
The barricade note cites code section 2.2.3.2.H; confirm current City requirements.
C7-05 · Alternative barrier acceptance is discretionary
Alternative barriers may be accepted at the sole discretion of the City; do not price an unapproved substitution as base scope.
