C-6 · Erosion & Sediment Control Details 1 Bradenton Hotel and Restaurant
TAKEOFF / ACTUAL SOURCE MARKS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
MEASURED QUANTITIES
This NTS detail has no project plan-length takeoff.
PRINTED DIMENSIONS / REQUIREMENTS
Type III posts: 6 FT maximum spacing
Type IV posts: 10 FT maximum spacing
Tracking entrance: 50 FT standard length
Tracking entrance: 15 FT minimum width
Supported fence: 10 FT maximum post spacing
Support-fence trench: 4 IN x 6 IN
Wood post: 36 IN maximum height
Inlet protection: 12 FT apron dimensions shown
SOURCE

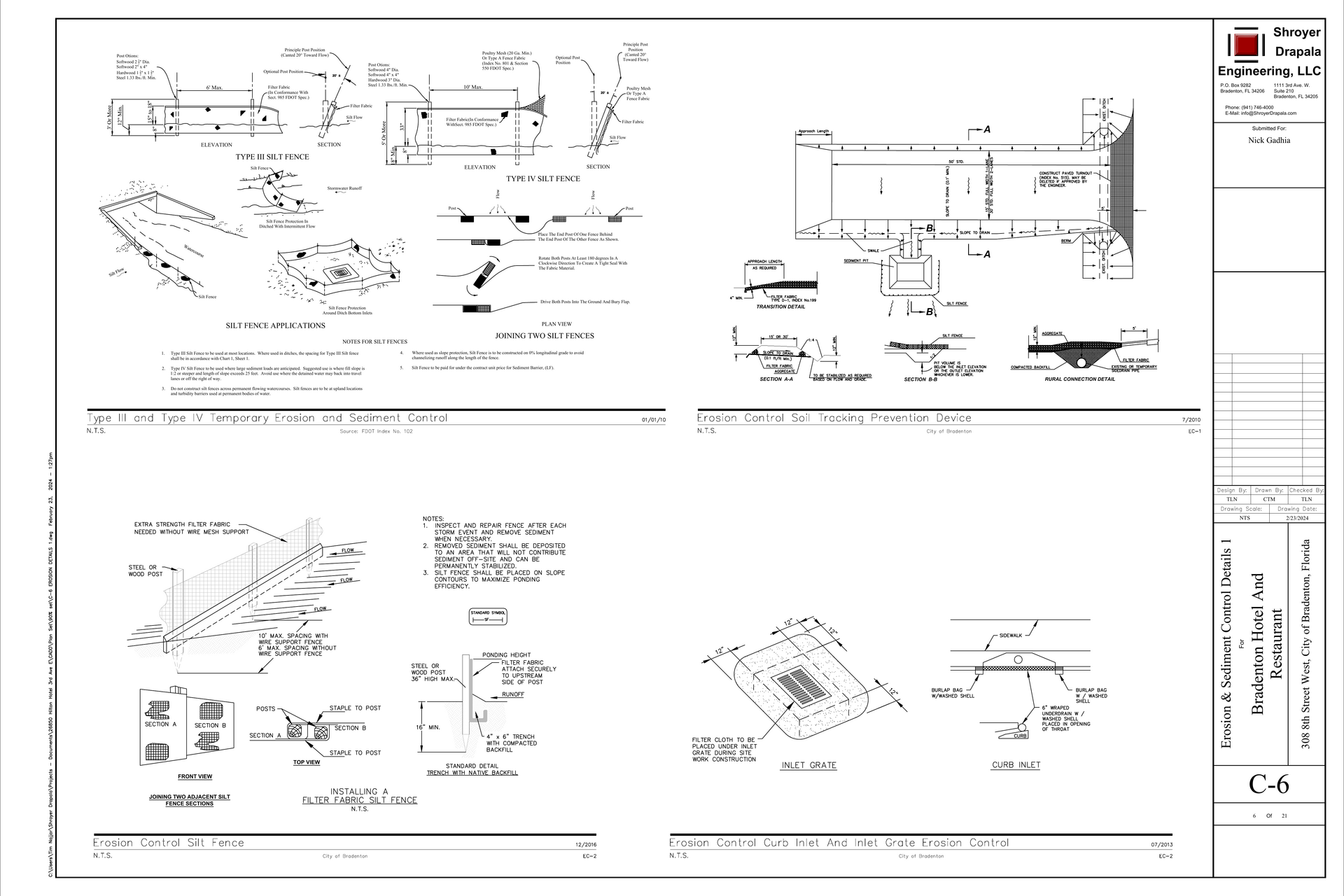

C-6 · Civil PDF page 6
Issued 02.23.2024 · NTS
EROSION & SEDIMENT CONTROL DETAILS 1
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
The civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. Confirm the governing parcel and address before bid documents and RFIs are issued.
C6-02 · Detail count is not installed quantity
C-6 is NTS. The four assemblies and subdetails define means and materials; their project LF/EA must come from the erosion-control plan or field sequencing.
C6-03 · Sheet-total conflict
The title block prints Sheet 6 of 21, while the cover index identifies a 20-sheet civil set.
C6-04 · Source standards require current-edition confirmation
Details cite FDOT indexes and City of Bradenton standards dated 2010, 2013 and 2016. Confirm the adopted editions.
C6-05 · Temporary-control duration is open
Maintenance duration, relocations and replacement cycles are not quantified on this detail sheet.
