C-5 · Easement Vacation Plan Bradenton Hotel and Restaurant
TAKEOFF / SOURCE COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
QUANTITIES / DIMENSIONS
No linear, area or volume quantity is reported unless supported by an explicit printed value. Graphic-only geometry remains open rather than estimated.
NOTES / REFERENCES

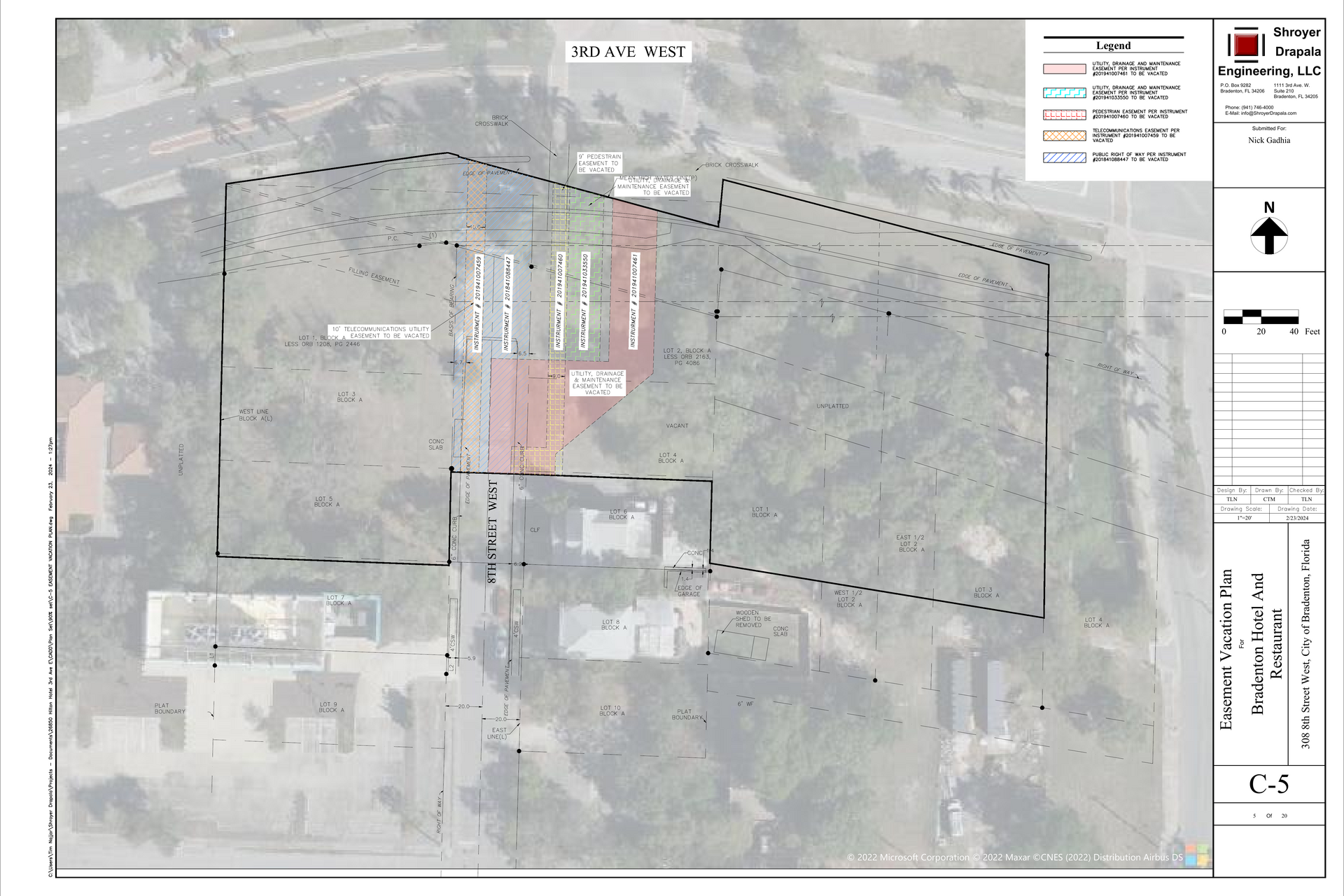

Easement vacation plan showing five separately keyed recorded interests: Instrument 201941007461, 201941033550, 201941007460, 201941007459 and 201841088447. Status is “to be vacated”; completion is not proven on this sheet.
SOURCE
C-5 · Civil PDF page 5
Issued 02.23.2024 · 1" = 20' · PRINTED SCALE ONLY
EASEMENT VACATION PLAN
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
This civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. The layouts appear to describe the same development, but the governing parcel/address has not been confirmed.
C5-02 · Vacation status requires title confirmation
The plan says the five instruments are “to be vacated.” Confirm recording, effective dates and final title commitment before relying on the release.
C5-03 · No legal area schedule
Colored regions and several widths are shown, but no closed-boundary area table is printed. No SF or acreage is inferred.
C5-04 · Instrument descriptions must match title documents
Verify each instrument number, beneficiary and encumbrance against the current title package.
C5-05 · Later site work depends on cleared rights
Do not release foundations, utilities or paving within affected strips until the vacation chain is complete.
