C-16 · Site Details 2 Bradenton Hotel and Restaurant
TAKEOFF / ACTUAL SOURCE MARKS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
MEASURED QUANTITIES
This detail/section sheet creates no unsupported project LF.
PRINTED DIMENSIONS / REQUIREMENTS
Concrete walk: 4 IN typical; 6 IN where subject to vehicular traffic
Crushed-concrete base: minimum 8 IN, LBR-100, 98% AASHTO T-180
Compacted subgrade: minimum 12 IN, LBR-40, 98% AASHTO T-180
Base under curb: minimum 6 IN and 12 IN beyond back of curb
STOP sign: 30 IN x 30 IN, R1-1
Dumpster pad: minimum 10 FT x 10 FT x 6 IN
Dumpster fence: 6 FT opaque
Dumpster setback: 10 FT minimum unless approved sprinkler protection is provided

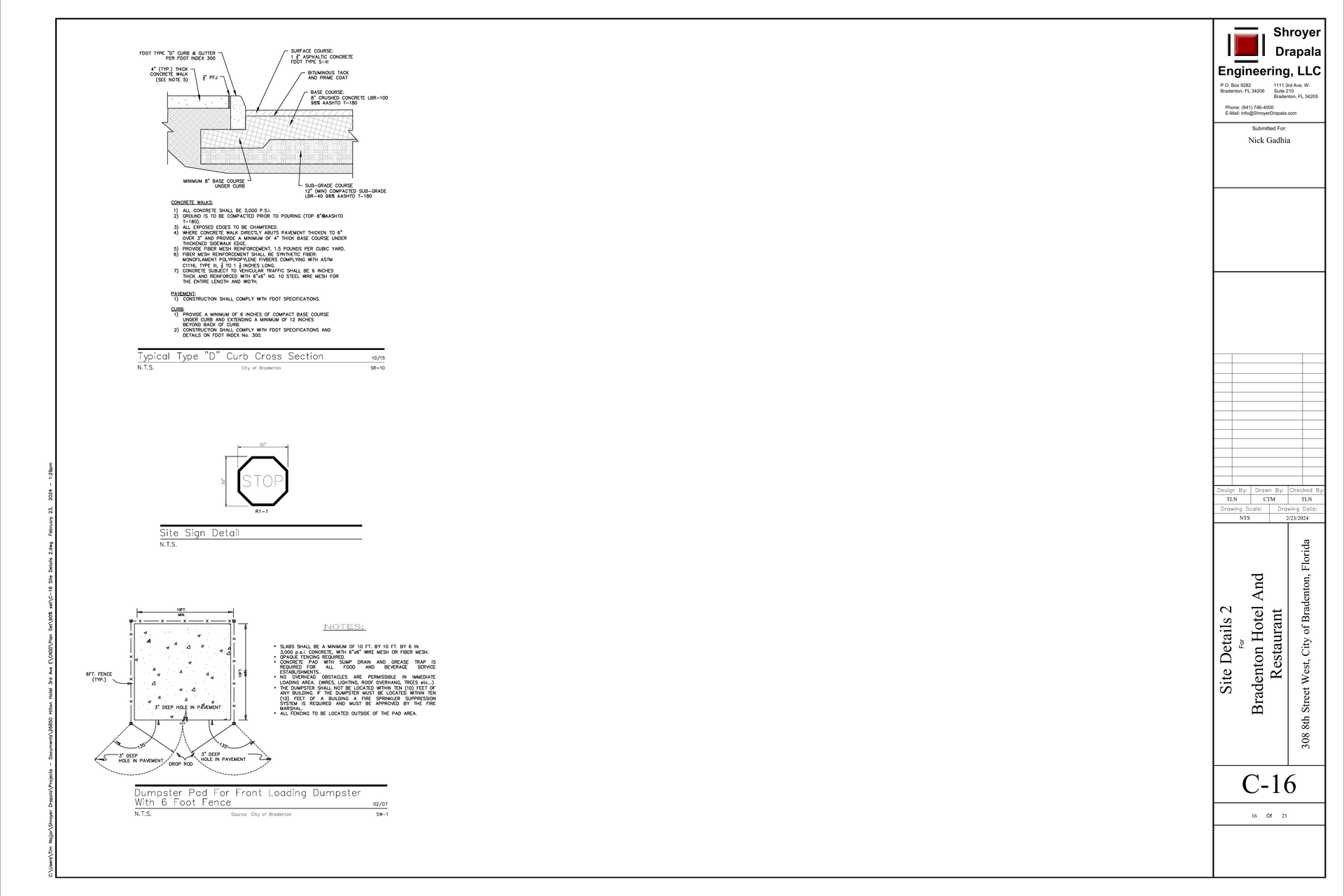

SOURCE
C-16 · Civil PDF page 15
Issued 02.23.2024 · NTS
SITE DETAILS 2
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
The civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. Confirm the governing parcel and address before bid documents and RFIs are issued.
CIV-NUMBERING · C-14 is missing from the issued PDF
The source PDF proceeds from C-13 directly to C-15. The cover index and title-block totals are inconsistent; obtain the missing C-14 sheet or written confirmation that it was intentionally omitted.
C16-03 · Dumpster pad location is not identified on this detail
C-16 defines the assembly but does not establish whether the hotel or future restaurant carries the pad, drain, grease trap and enclosure.
C16-04 · Drain and grease-trap connection is unresolved
The detail requires a sump drain and grease trap for food and beverage service but provides no pipe size, route, invert or receiving system.
C16-05 · Detail count is not installed quantity
The three NTS details are definitions. Curb LF, sign EA and dumpster-pad EA must be reconciled to the plan and project scope.
