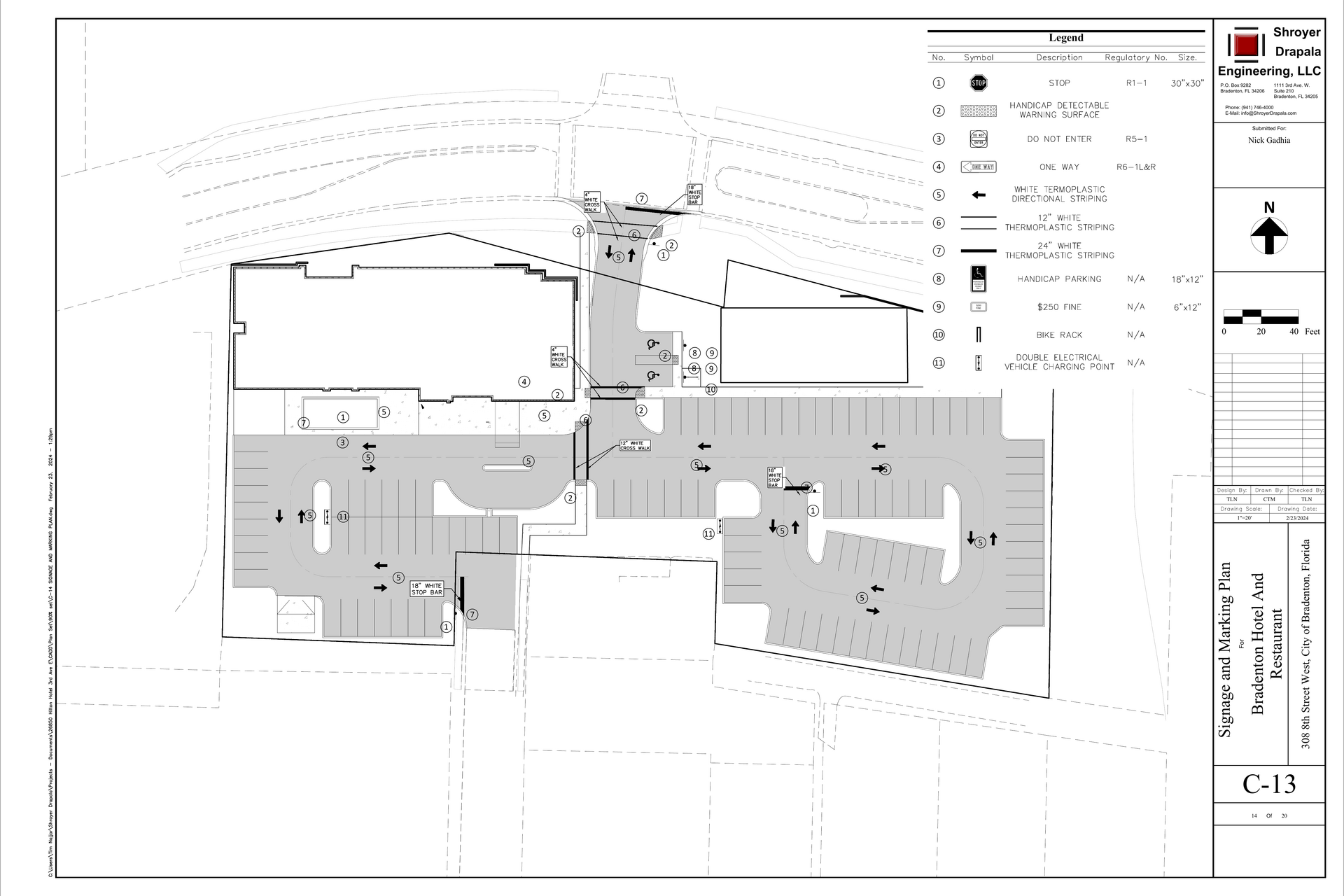

C-13 · Signage and Marking Plan Bradenton Hotel and Restaurant
TAKEOFF / ACTUAL SOURCE MARKS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
MEASURED QUANTITIES
Select a row to draw its exact saved path on the plan.
PRINTED DIMENSIONS / REQUIREMENTS
STOP sign: R1-1, 30 IN x 30 IN
Accessible parking sign: 18 IN x 12 IN
Fine sign: 6 IN x 12 IN
Plan callouts: 18 IN white stop bars
Plan callouts: 4 IN and 12 IN white crosswalk
All pavement markings: thermoplastic per C-15 detail note
SOURCE
C-13 · Civil PDF page 13
Issued 02.23.2024 · 1" = 20 FT · PRINTED SCALE
SIGNAGE AND MARKING PLAN
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
The civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. Confirm the governing parcel and address before bid documents and RFIs are issued.
CIV-NUMBERING · C-14 is missing from the issued PDF
The source PDF proceeds from C-13 directly to C-15. The cover index and title-block totals are inconsistent; obtain the missing C-14 sheet or written confirmation that it was intentionally omitted.
C13-03 · Stop-bar width conflicts with legend
Plan callouts identify 18-inch white stop bars, while the legend defines symbol 7 as 24-inch white thermoplastic striping. Confirm the governing width.
C13-04 · Crosswalk callouts conflict with legend
Plan callouts show both 4-inch and 12-inch white crosswalk markings, while the legend defines symbol 6 as 12-inch white thermoplastic striping. Confirm line pattern and pay width.
C13-05 · EV charging equipment scope is not defined here
Two double charging-point symbols are plotted, but charger equipment, bollards, electrical feeders, network service and mounting details are not specified on C-13.
