A2.17 · Kitchen Equipment Home2 Suites · Bradenton
TAKEOFF / SOURCE COUNTS
Select a row for its source and quantity basis.
AREAS / LENGTHS
Select a quantity to show its source boundary.
EQUIPMENT SCHEDULE ALTERNATIVES
Selection unresolved. Plotted LOC counts above are separate from these scheduled quantities.
Walk-in · 39 source rows
01 · 1 · REFRIGERATION RACK
SCHEDULED · OMNI
OTA1-AC-H-2-0-3-4
02 · 1 · WALK-IN COOLER / FREEZER ASSEMBLY
SCHEDULED · AMERICAN PANEL
CUSTOM
03 · 1 · HAND SINK W/ SOAP AND TOWEL DISPENSER
SCHEDULED · ADVANCE TABCO
7-PS-87
04 · 1 · MOBILE WORK TABLE
SCHEDULED · CUSTOM FABRICATED
Model not stated
05 · 1 · UNDERCOUNTER DISHMACHINE (HIGH TEMP)
SCHEDULED · CHAMPION
UH-230B
06 · 1 · DISHTABLE RACK SHELF
SCHEDULED · ADVANCE TABCO
DT-6R-11
07 · 3 · WALL SHELF (HIGH MOUNT)
SCHEDULED · METRO
1WD24K3/2WD24K3/2436NK3
08 · 1 · DISH / POT WASHING SINKS
SCHEDULED · CUSTOM FABRICATED
Model not stated
09 · 1 · PRE-RINSE W/FAUCET
SCHEDULED · T&S BRASS
B-2278-A12-EI
10 · 1 · EYE WASH STATION
SCHEDULED · HAWS
7360BT-7460BT
11 · 6 · MOBILE COOLER/FREEZER SHELVING
SCHEDULED · METRO
METROMAX Q
12 · 1 · UTENSIL RACK W/ SHELF
SCHEDULED · ADVANCE TABCO
PS-12-60
13 · 1 · WORKTABLE WITH SINK
SCHEDULED · CUSTOM FABRICATED
Model not stated
14 · 1 · COFFEE MAKER (OPERATOR FURNISHED)
SCHEDULED · FETCO
CBS-2152XTS
15 · 1 · WALL SHELF (HIGH MOUNT)
SCHEDULED · METRO
1WD24K3/2436NK3
16 · 1 · CONVECTION OVEN (VENTLESS)
SCHEDULED · MOFFAT (TURBOFAN)
E33D5H2
17 · 2 · WALL SHELF
SCHEDULED · CUSTOM FABRICATED
Model not stated
18 · 1 · WORKTOP REFRIGERATOR
SCHEDULED · TRUE FOOD SERVICE
TWT-67-HC~SPEC3.
19 · 4 · STORAGE SHELVING
SCHEDULED · METRO
METROMAX Q
20 · 1 · CONVECTION OVEN (VENTLESS) (OPTIONAL)
OPTION · MOFFAT (TURBOFAN)
E33D5H2
21 · 1 · SPEED RACK
SCHEDULED · CRES COR
207-UA-13A
22 · 1 · MICROWAVE OVEN WITH SHELF (OPTIONAL)
OPTION · AMANA
HDC12A2/BMS2024
23 · 1 · BATTER MIX STARTER KIT (OPERATOR FURNISHED)
SCHEDULED · Manufacturer not stated
Model not stated
24 · 1 · WAFFLE MAKER
SCHEDULED · GOLDEN MALTED
RT SERIES
25 · 1 · WAFFLE MAKER (FUTURE)
FUTURE · GOLDEN MALTED
RT SERIES
26 · 1 · CONVEYOR TOASTER
SCHEDULED · APW WYOTT
ECO 4000-350L-HILTON
27 · 1 · DISPLAY SHOWCASE
SCHEDULED · EQUIPEX
WD780B-2/1
28 · 1 · JUICE DISPENSER (BY VENDOR)
SCHEDULED · NESTLE VITALITY
EXPRESS
29 · — · NOT USED
NOT USED · Manufacturer not stated
Model not stated
30 · 1 · CEREAL DISPENSER
SCHEDULED · ROSETTO
EZP2135
31 · — · NOT USED
NOT USED · Manufacturer not stated
Model not stated
32 · 1 · UNIT COOLER (COOLER)
SCHEDULED · OMNITEMP
KLP106MA-S1D
33 · 1 · UNIT COOLER (FREEZER)
SCHEDULED · OMNI
KLP106LE-S2D
34 · 1 · YOGURT DISPENSER (BY VENDOR)
SCHEDULED · PERFECT PARFAIT
PPHG1BK
35 · 1 · REACH-IN DISPLAY FREEZER
SCHEDULED · TRUE
GDM-23F-HC-TSL01
36 · 1 · REACH-IN DISPLAY REFRIGERATOR
SCHEDULED · TRUE
GDM-49-HC-TSL01
37 · 1 · WATER DISPENSER
SCHEDULED · MARCO
FRIIA HCS
38 · 2 · COFFEE DISPENSER (OPERATOR FURNISHED)
SCHEDULED · FETCO
D449
39 · 1 · WARMING KETTLE (DROP-IN)
SCHEDULED · VOLLRATH
74701D
Dry Storage · 39 source rows
01 · 1 · MOBILE REACH-IN FREEZER
SCHEDULED · TRUE
T-49F-HC
02 · 2 · MOBILE REACH-IN REFRIGERATOR
SCHEDULED · TRUE
TS-49-HC
03 · 1 · HAND SINK W/ SOAP AND TOWEL DISPENSER
SCHEDULED · ADVANCE TABCO
7-PS-87
04 · 1 · MOBILE WORK TABLE
SCHEDULED · CUSTOM FABRICATED
Model not stated
05 · 1 · UNDERCOUNTER DISHMACHINE (HIGH TEMP)
SCHEDULED · CHAMPION
UH-100B
06 · 1 · DISHTABLE RACK SHELF
SCHEDULED · ADVANCE TABCO
DT-6R-11
07 · 3 · WALL SHELF (HIGH MOUNT)
SCHEDULED · METRO
1WD24K3/2WD24K3/2436NK3
08 · 1 · DISH / POT WASHING SINKS
SCHEDULED · CUSTOM FABRICATED
Model not stated
09 · 1 · PRE-RINSE W/FAUCET
SCHEDULED · T&S BRASS
B-2278-A12-EI
10 · 1 · EYE WASH STATION
SCHEDULED · HAWS
7360BT-7460BT
11 · 1 · SPARE NUMBER
SPARE · Manufacturer not stated
Model not stated
12 · 1 · UTENSIL RACK W/ SHELF
SCHEDULED · ADVANCE TABCO
PS-12-60
13 · 1 · WORKTABLE WITH SINK
SCHEDULED · CUSTOM FABRICATED
Model not stated
14 · 1 · COFFEE MAKER (OPERATOR FURNISHED)
SCHEDULED · FETCO
CBS-2152XTS
15 · 1 · WALL SHELF (HIGH MOUNT)
SCHEDULED · METRO
1WD24K3/2436NK3
16 · 1 · CONVECTION OVEN (VENTLESS)
SCHEDULED · MOFFAT (TURBOFAN)
E33D5H2
17 · 2 · WALL SHELF
SCHEDULED · CUSTOM FABRICATED
Model not stated
18 · 1 · MOBILE REACH-IN FREEZER
SCHEDULED · TRUE
T-23F-HC
19 · 3 · STORAGE SHELVING
SCHEDULED · METRO
METROMAX Q
20 · 1 · CONVECTION OVEN (VENTLESS) (OPTIONAL)
OPTION · MOFFAT (TURBOFAN)
E33D5H2
21 · 1 · SPARE NUMBER
SPARE · Manufacturer not stated
Model not stated
22 · 1 · MICROWAVE OVEN WITH SHELF
SCHEDULED · AMANA
HDC12A2/BMS2024
23 · 1 · BATTER MIX STARTER KIT (OPERATOR FURNISHED)
SCHEDULED · Manufacturer not stated
Model not stated
24 · 1 · WAFFLE MAKER (BY VENDOR)
SCHEDULED · Manufacturer not stated
Model not stated
25 · 1 · WAFFLE MAKER (FUTURE) (BY VENDOR)
FUTURE · Manufacturer not stated
Model not stated
26 · 1 · CONVEYOR TOASTER
SCHEDULED · APW WYOTT
ECO 4000-350L-HILTON
27 · 1 · DISPLAY SHOWCASE
SCHEDULED · EQUIPEX
WD780B-2/1
28 · 1 · JUICE DISPENSER (BY VENDOR)
SCHEDULED · NESTLE VITALITY
EXPRESS
29 · 1 · WARMING KETTLE (OPTIONAL)
OPTION · VOLLRATH
72017
30 · 1 · CEREAL DISPENSER
SCHEDULED · ROSETTO
EZP2135
31 · — · NOT USED
NOT USED · Manufacturer not stated
Model not stated
32 · 1 · SPARE NUMBER
SPARE · Manufacturer not stated
Model not stated
33 · 1 · SPARE NUMBER
SPARE · Manufacturer not stated
Model not stated
34 · 1 · YOGURT DISPENSER (BY VENDOR)
SCHEDULED · PERFECT PARFAIT
PPHG1BK
35 · 1 · REACH-IN DISPLAY FREEZER
SCHEDULED · TRUE
GDM-23F-HC-TSL01
36 · 1 · REACH-IN DISPLAY REFRIGERATOR
SCHEDULED · TRUE
GDM-49-HC-TSL01
37 · 1 · WATER DISPENSER
SCHEDULED · MARCO
FRIIA HCS
38 · 2 · COFFEE DISPENSER (OPERATOR FURNISHED)
SCHEDULED · FETCO
D449
39 · 1 · WARMING KETTLE (DROP-IN)
SCHEDULED · VOLLRATH
74701D
13 rows differ between alternatives.
Full schedule comparisonASSEMBLIES / RECONCILIATION
Source quantities
REF entries are references, REQ entries are requirements, SHOWN entries need final identification, and LOC entries count plotted callouts. These are not one installed-asset total.
Walls / floors / ceilings
Keep clear footprints, gross room boundaries and shared construction walls separate. Resolve wall types, height, openings, finish codes and casework before net quantities.
Furniture / equipment
Reconcile each object across plans, enlarged views, schedules and vendor packages. Optional, future, operator-furnished and alternative scope remain distinct.
Utilities / supports
Coordinate power, water, drainage, equipment clearances, mounting/backing and millwork partitions with selected equipment and trade drawings.
PLAN NOTES / REFERENCES
Printed 3/8 inch = 1 foot. This crop lacks overall printed dimensions; scale registered to A2.16 grid-calibrated geometry.
Both complete schedules retained separately: Walk-in and Dry Storage. No combined equipment order or assumed selected alternative.
Plan shows two item02 locations; dry-storage schedule specifies two reach-in refrigerators, while walk-in schedule specifies one cooler/freezer assembly.
Rows20/22/29 have differing optional status; row25 is future. Operator/vendor-furnished scope is preserved in each original description.
Rows07 and17 have multiple scheduled shelves despite one plotted callout. Row19 quantities differ by alternative.
Hydration station note directs plumbing water line/floor drain coordination at TV accent wall; not within this crop.

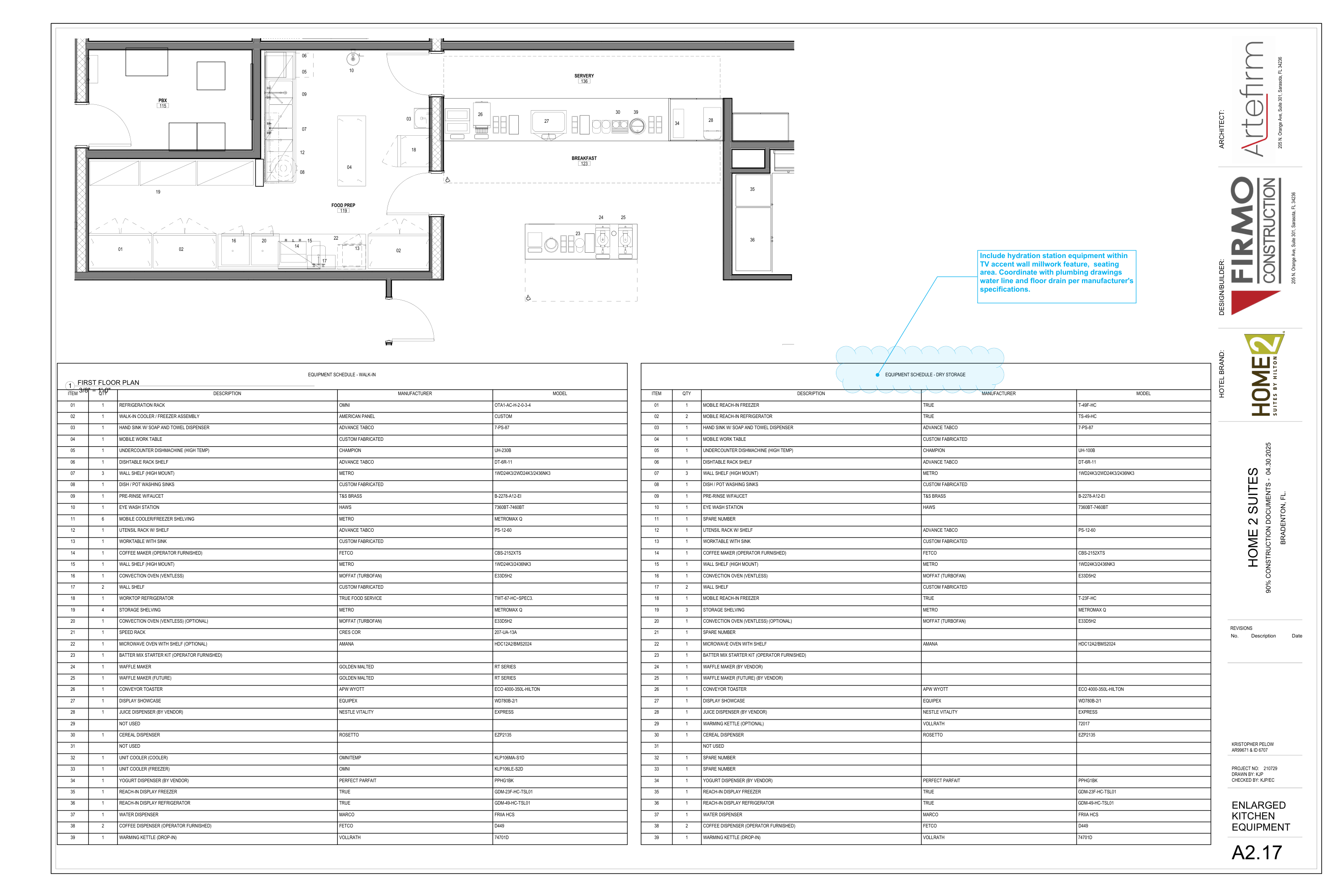

SOURCE
A2.17 · PDF page31 · 36″ × 24″
Printed04.30.2025
Select a source region.
KITCHEN EQUIPMENT
BROKEN CHAINS & PLAN ISSUES
PI-01 · Two incompatible equipment schedules
Walk-in and Dry Storage are alternative equipment designs. Do not add their quantities. Selection affects refrigeration, dishmachine model, shelves, optional equipment and utility requirements.
PI-02 · Plotted refrigeration matches dry-storage arrangement more closely
Two item02 locations plus item01 and18 individual equipment footprints resemble the dry-storage reach-in scheme. This is an inference, not design approval; retain the walk-in option until designer confirms.
PI-03 · Quantity / location differences
One callout07 represents3 shelves;17 represents2. Item19 is4 storage shelves in Walk-in versus3 in Dry Storage. A location marker is not an installed quantity.
BC-01 · Schedule-only items without plotted locations
Verify locations of applicable scheduled items11/21/29/32/33/37/38. Spare/not-used rows stay inactive; optional/future rows require selection. Do not create plotted marks for absent items.
BC-02 · Hydration equipment outside kitchen crop
Blue note references TV accent-wall millwork, water line and floor drain. A2.16 has hydration830/PA-803 references; exact equipment37 relationship and installation location remain unresolved.
BC-03 · Utilities and manufacturer clearances
Electrical loads, water, waste, indirect drainage, backflow, heat rejection, ventilation and clearances require trade/manufacturer coordination. Model strings are copied from source, not verified current product selections.
BC-04 · Room and casework duplication
Food prep119, PBX115, servery136 and breakfast123 repeat A2.16. These larger-view envelopes refine prior geometry; do not add them as new floor areas or duplicate kitchen packages.
BC-05 · Scale verification basis
Printed3/8 scale is checked by registration with A2.16. No independent dimension string within this crop controls equipment size. Use model/shop dimensions before fabrication.
SYNC · Mason Brain / estimate transfer
Saved takeoff pages are not proof of Mason Brain or estimate synchronization. No verified transfer is claimed; preserve source, alternative and reconciliation status.
