E8.0 · Electrical COMcheck Report Home2 Suites · Bradenton
TAKEOFF / ACTUAL PLAN COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT HVAC / ELECTRICAL NOTES
QUANTITIES / DIMENSIONS
Select a row to show its exact source basis.
ASSEMBLIES / ACCESSORIES
Interior certificate
Pages 1-2: 13 allowed-area rows and 27 proposed-fixture rows; every value, field, signature, date and compliance statement is retained.
Exterior certificate
Pages 3-4: 4 allowed-area rows and 9 proposed-fixture rows; allowance footnotes, signature, date and compliance statement are retained.
Compliance identity
COMcheckWeb · 2021 IECC · project 24-06-16 HOME2 BRADENTON, FL · report 11/21/24 · certificates signed 11/22/2024.
NOTES / REFERENCES
Interior certificate: Interior Lighting PASSES: Design 31% better than code.
Exterior certificate: Exterior Lighting PASSES: Design 35% better than code.
Additional efficiency packages: 10.0 credits required; 11.0 proposed from 5% cooling efficiency improvement, dedicated outdoor air and reduced lighting power.
SOURCE

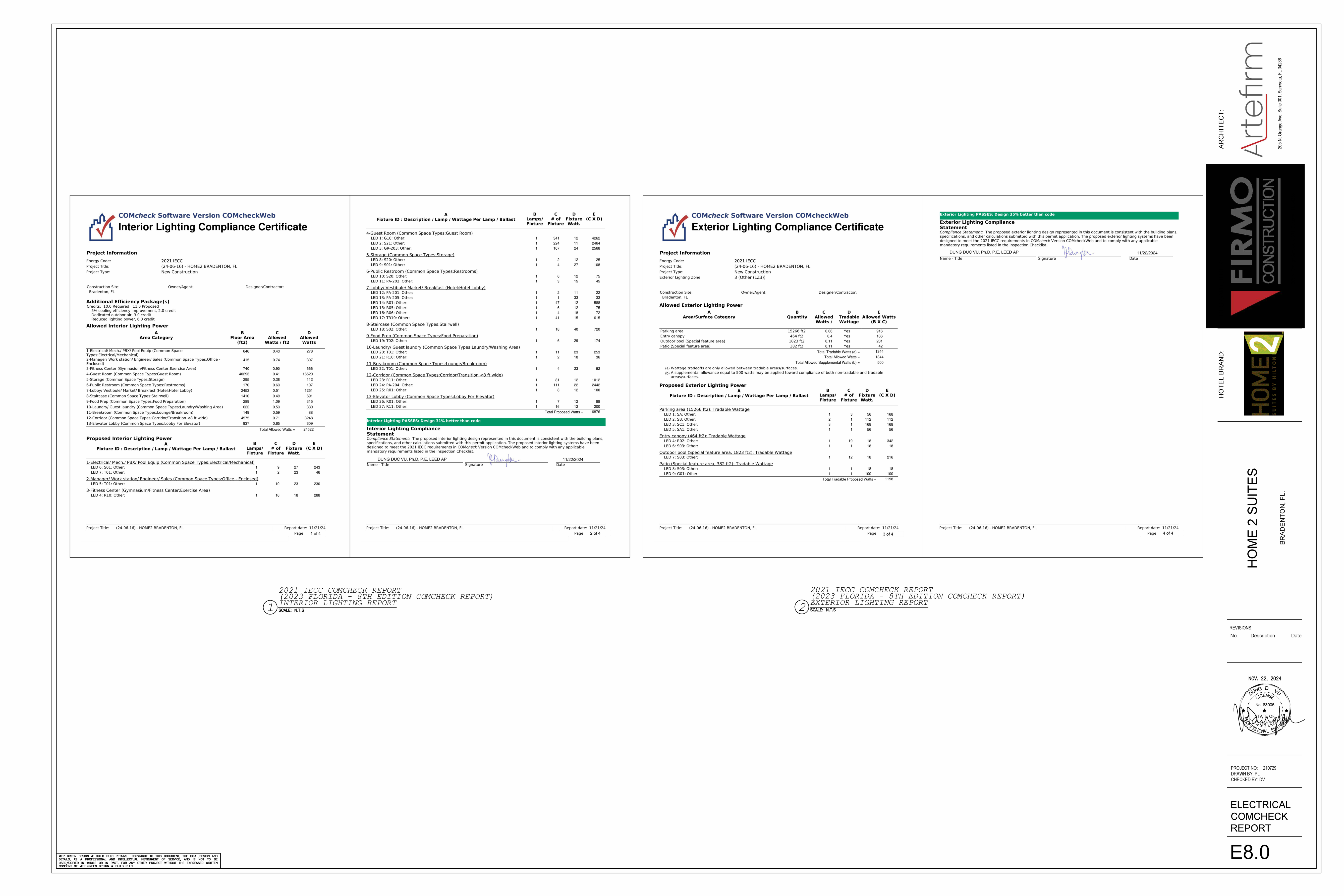

E8.0 · Engineering PDF page 57
Issued 11.22.2024 · NTS / SCHEDULE · NO PLAN-SCALE LF
ELECTRICAL COMCHECK REPORT
BROKEN CHAINS & PLAN ISSUES
1 · Critical Scope
All fixture quantities are COMcheck compliance-report aggregates. They are not certified installed takeoff counts and must not be multiplied or substituted for plotted occurrences.
2 · Arithmetic
Interior LED 1 / G10 prints quantity 341, fixture watts 12, and proposed watts 4,262. The displayed multiplication 341 x 12 equals 4,092, a 170 W difference. Printed values are preserved without correction.
3 · Rounding Or Hidden Precision
Additional interior rows do not equal quantity times the displayed integer fixture watts: LED 8/S20 +1 W, LED 10/S20 +3 W, LED 14/R01 +24 W, LED 15/R05 +3 W, LED 23/R11 +40 W, LED 25/R01 +4 W, LED 26/R01 +4 W, and LED 27/R11 +8 W. Unprinted precision may exist, but no hidden fixture wattage or correction is inferred.
4 · Code Edition
The embedded certificates state Energy Code 2021 IECC, while both engineering detail captions label the reports as 2023 Florida - 8th Edition COMcheck reports. Applicability/equivalence requires confirmation.
5 · Project Identity
The COMcheck project identifier is 24-06-16; the engineering title block project number is 210729. The relationship is not explained on E8.0.
6 · Blank Fields
Owner/Agent and Designer/Contractor fields are printed blank on both certificates.
7 · Climate Zone
No climate zone is printed. Only Exterior Lighting Zone 3 (Other (LZ3)) is provided.
8 · Cross Sheet
COMcheck fixture aggregates are not fully reconcilable to E2.x plotted marker totals; some values match and others differ materially, with no whole-building mapping supplied on E8.0.
9 · Cross Sheet
E6.1 lighting circuit VA values are not directly comparable with COMcheck fixture watts; no schedule provides a documented bridge between those bases.
10 · Row Rounding
Exterior allowed-watt row values print 916 + 186 + 201 + 42 = 1,345 W, while Total Tradable Watts and Total Allowed Watts each print 1,344 W. The one-watt difference is consistent with summing displayed rounded row values versus underlying unrounded calculations, but no hidden precision is inferred.
