C-1 · Civil Cover Sheet Bradenton Hotel and Restaurant
TAKEOFF / SOURCE COUNTS
No installed plan marks occur on this reference/notes sheet. Source material is captured without creating false field quantities.
IMPORTANT CIVIL NOTES
QUANTITIES / DIMENSIONS
No linear, area or volume quantity is reported unless supported by an explicit printed value. Graphic-only geometry remains open rather than estimated.
NOTES / REFERENCES

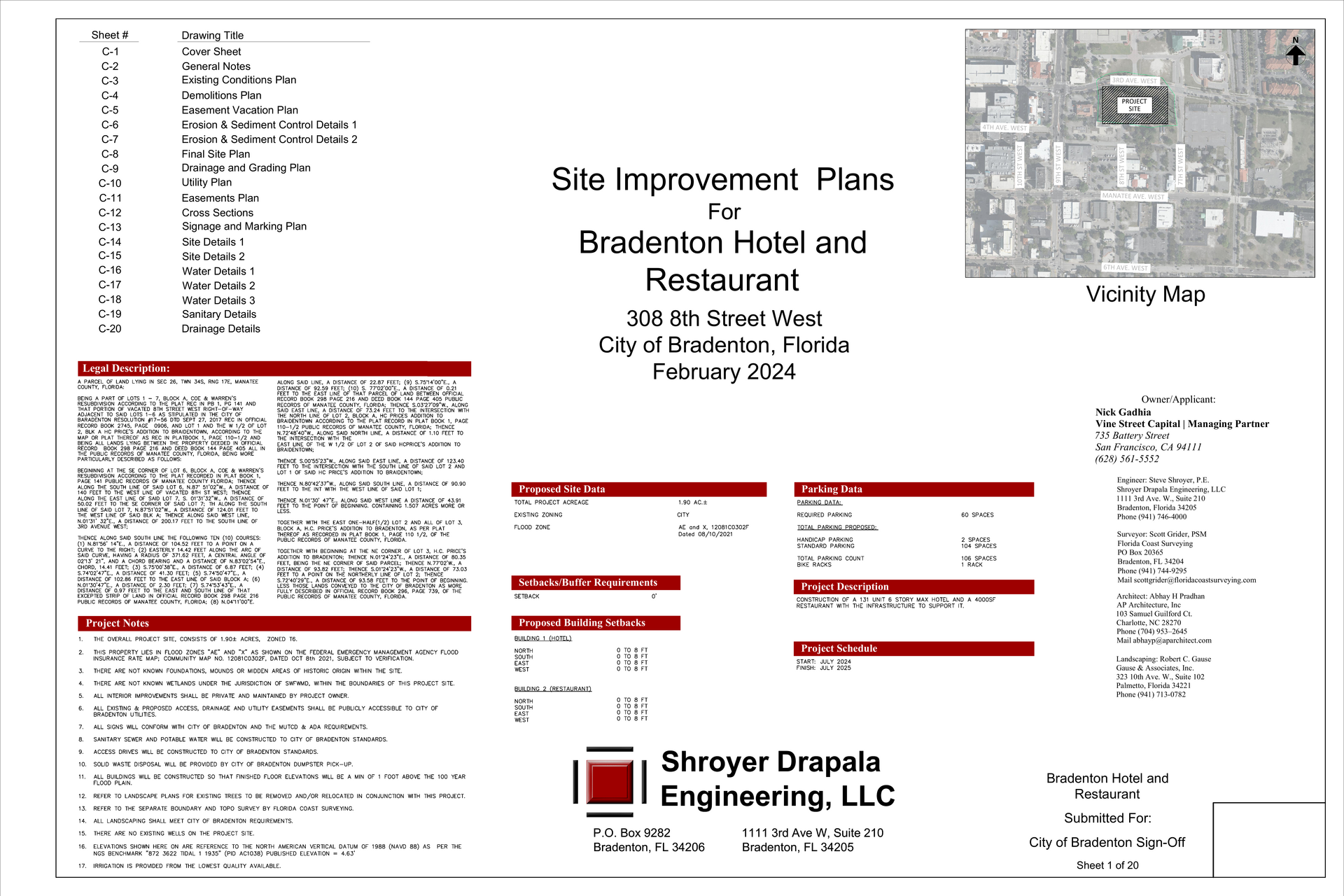

Civil cover with legal description, 17 project notes, proposed site data, setbacks, parking data, project description, project schedule, vicinity map, owner/applicant and consultant contacts. No installed quantity is plotted on this NTS sheet.
SOURCE
C-1 · Civil PDF page 1
Issued 02.23.2024 · NTS
CIVIL COVER SHEET
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
This civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. The layouts appear to describe the same development, but the governing parcel/address has not been confirmed.
C1-02 · Civil revision is older than architectural review
C-1 is dated February 2024; the current architectural/Hilton review material is later. Confirm whether a revised civil issue exists.
C1-03 · Zero-foot setback schedule requires authority review
The cover prints 0 FT setback/buffer and 0 TO 8 FT proposed building setbacks for both hotel and restaurant. Confirm zoning interpretation and final site placement.
C1-04 · Tree-removal reference is external
Project Note 12 directs tree removal/relocation to landscape plans. No tree quantity is taken from C-1.
C1-05 · Irrigation source is open
Project Note 17 states irrigation is provided from the lowest-quality available water, but the source and connection are not identified on C-1.
