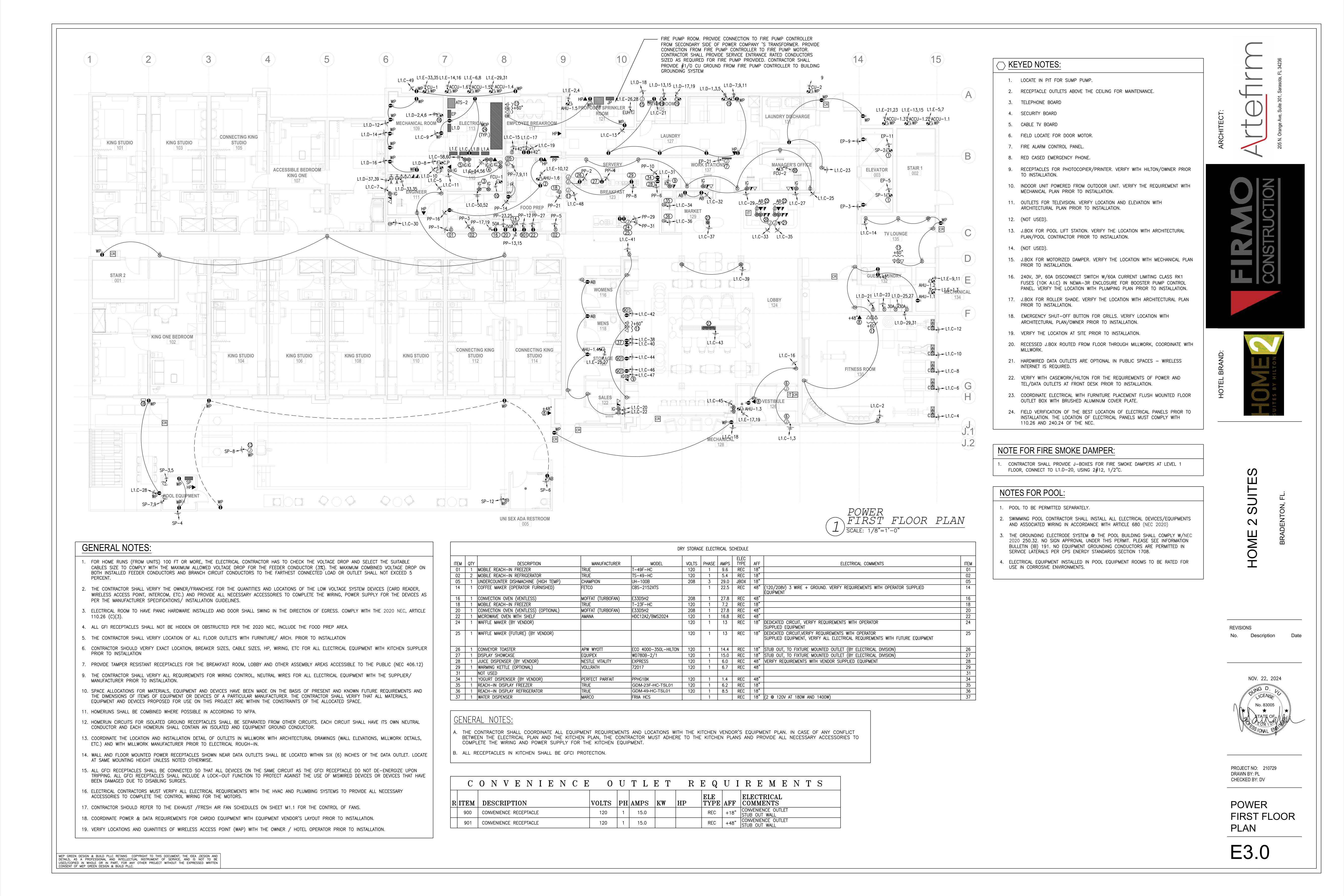

E3.0 · Power First Floor Plan Home2 Suites · Bradenton
TAKEOFF / ACTUAL PLAN COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT HVAC / ELECTRICAL NOTES
QUANTITIES / DIMENSIONS
Select a row to show its exact source basis.
ASSEMBLIES / ACCESSORIES
Complete first-floor power register
Every plotted receptacle, equipment connection, panel, home run, circuit callout, accessory and visible connection curve is individually retained.
Dry-storage electrical schedule
Every printed row, electrical requirement, option/future/not-used status and vendor responsibility is preserved as schedule evidence, not automatically added to installed plan quantity.
Pool and building systems
Pool, fire-pump, booster, sump, HVAC, plumbing and control items remain tied to the exact plan callouts and coordination notes; no unshown accessory is inferred.
NOTES / REFERENCES
1. FOR HOME RUNS (FROM UNITS) 100 FT OR MORE, THE ELECTRICAL CONTRACTOR HAS TO CHECK THE VOLTAGE DROP AND SELECT THE SUITABLE CABLES SIZE TO COMPLY WITH THE MAXIMUM ALLOWED VOLTAGE DROP FOR THE FEEDER CONDUCTOR (3%). THE MAXIMUM COMBINED VOLTAGE DROP ON BOTH INSTALLED FEEDER CONDUCTORS AND BRANCH CIRCUIT CONDUCTORS TO THE FARTHEST CONNECTED LOAD OR OUTLET SHALL NOT EXCEED 5 PERCENT.
2. THE CONTRACTOR SHALL VERIFY THE OWNER/FRANCHISE FOR THE QUANTITIES AND LOCATIONS OF THE LOW VOLTAGE SYSTEM DEVICES (CARD READER, WIRELESS ACCESS POINT, INTERCOM, ETC.) AND PROVIDE ALL NECESSARY ACCESSORIES TO COMPLETE THE WIRING, POWER SUPPLY FOR THE DEVICES AS PER THE MANUFACTURER SPECIFICATIONS/INSTALLATION GUIDELINES.
3. ELECTRICAL ROOM TO HAVE PANIC HARDWARE INSTALLED AND DOOR SHALL SWING IN THE DIRECTION OF EGRESS. COMPLY WITH THE 2020 NEC, ARTICLE 110.26 (C)(3).
4. ALL GFI RECEPTACLES SHALL NOT BE HIDDEN OR OBSTRUCTED PER THE 2020 NEC, INCLUDE THE FOOD PREP AREA.
5. THE CONTRACTOR SHALL VERIFY LOCATION OF ALL FLOOR OUTLETS WITH FURNITURE/ ARCH. PRIOR TO INSTALLATION
6. CONTRACTOR SHOULD VERIFY EXACT LOCATION, BREAKER SIZES, CABLE SIZES, HP, WIRING, ETC FOR ALL ELECTRICAL EQUIPMENT WITH KITCHEN SUPPLIER PRIOR TO INSTALLATION
7. PROVIDE TAMPER RESISTANT RECEPTACLES FOR THE BREAKFAST ROOM, LOBBY AND OTHER ASSEMBLY AREAS ACCESSIBLE TO THE PUBLIC (NEC 406.12)
9. THE CONTRACTOR SHALL VERIFY ALL REQUIREMENTS FOR WIRING CONTROL, NEUTRAL WIRES FOR ALL ELECTRICAL EQUIPMENT WITH THE SUPPLIER/MANUFACTURER PRIOR TO INSTALLATION.
10. SPACE ALLOCATIONS FOR MATERIALS, EQUIPMENT AND DEVICES HAVE BEEN MADE ON THE BASIS OF PRESENT AND KNOWN FUTURE REQUIREMENTS AND THE DIMENSIONS OF ITEMS OF EQUIPMENT OR DEVICES OF A PARTICULAR MANUFACTURER. THE CONTRACTOR SHALL VERIFY THAT ALL MATERIALS, EQUIPMENT AND DEVICES PROPOSED FOR USE ON THIS PROJECT ARE WITHIN THE CONSTRAINTS OF THE ALLOCATED SPACE.
11. HOMERUNS SHALL BE COMBINED WHERE POSSIBLE IN ACCORDING TO NFPA.
12. HOMERUN CIRCUITS FOR ISOLATED GROUND RECEPTACLES SHALL BE SEPARATED FROM OTHER CIRCUITS. EACH CIRCUIT SHALL HAVE ITS OWN NEUTRAL CONDUCTOR AND EACH HOMERUN SHALL CONTAIN AN ISOLATED AND EQUIPMENT GROUND CONDUCTOR.
13. COORDINATE THE LOCATION AND INSTALLATION DETAIL OF OUTLETS IN MILLWORK WITH ARCHITECTURAL DRAWINGS (WALL ELEVATIONS, MILLWORK DETAILS, ETC.) AND WITH MILLWORK MANUFACTURER PRIOR TO ELECTRICAL ROUGH-IN.
14. WALL AND FLOOR MOUNTED POWER RECEPTACLES SHOWN NEAR DATA OUTLETS SHALL BE LOCATED WITHIN SIX (6) INCHES OF THE DATA OUTLET. LOCATE AT SAME MOUNTING HEIGHT UNLESS NOTED OTHERWISE.
15. ALL GFCI RECEPTACLES SHALL BE CONNECTED SO THAT ALL DEVICES ON THE SAME CIRCUIT AS THE GFCI RECEPTACLE DO NOT DE-ENERGIZE UPON TRIPPING. ALL GFCI RECEPTACLES SHALL INCLUDE A LOCK-OUT FUNCTION TO PROTECT AGAINST THE USE OF MISWIRED DEVICES OR DEVICES THAT HAVE BEEN DAMAGED DUE TO DISABLING SURGES.
16. ELECTRICAL CONTRACTORS MUST VERIFY ALL ELECTRICAL REQUIREMENTS WITH THE HVAC AND PLUMBING SYSTEMS TO PROVIDE ALL NECESSARY ACCESSORIES TO COMPLETE THE CONTROL WIRING FOR THE MOTORS.
17. CONTRACTOR SHOULD REFER TO THE EXHAUST /FRESH AIR FAN SCHEDULES ON SHEET M1.1 FOR THE CONTROL OF FANS.
18. COORDINATE POWER & DATA REQUIREMENTS FOR CARDIO EQUIPMENT WITH EQUIPMENT VENDOR'S LAYOUT PRIOR TO INSTALLATION.
19. VERIFY LOCATIONS AND QUANTITIES OF WIRELESS ACCESS POINT (WAP) WITH THE OWNER / HOTEL OPERATOR PRIOR TO INSTALLATION.
1. LOCATE IN PIT FOR SUMP PUMP.
2. RECEPTACLE OUTLETS ABOVE THE CEILING FOR MAINTENANCE.
3. TELEPHONE BOARD
4. SECURITY BOARD
5. CABLE TV BOARD
6. FIELD LOCATE FOR DOOR MOTOR.
7. FIRE ALARM CONTROL PANEL.
8. RED CASED EMERGENCY PHONE.
9. RECEPTACLES FOR PHOTOCOPIER/PRINTER. VERIFY WITH HILTON/OWNER PRIOR TO INSTALLATION.
10. INDOOR UNIT POWERED FROM OUTDOOR UNIT. VERIFY THE REQUIREMENT WITH MECHANICAL PLAN PRIOR TO INSTALLATION.
11. OUTLETS FOR TELEVISION. VERIFY LOCATION AND ELEVATION WITH ARCHITECTURAL PLAN PRIOR TO INSTALLATION.
12. (NOT USED).
13. J.BOX FOR POOL LIFT STATION. VERIFY THE LOCATION WITH ARCHITECTURAL PLAN/POOL CONTRACTOR PRIOR TO INSTALLATION.
14. (NOT USED).
15. J.BOX FOR MOTORIZED DAMPER. VERIFY THE LOCATION WITH MECHANICAL PLAN PRIOR TO INSTALLATION.
16. 240V, 3P, 60A DISCONNECT SWITCH W/60A CURRENT LIMITING CLASS RK1 FUSES (10K A.I.C) IN NEMA-3R ENCLOSURE FOR BOOSTER PUMP CONTROL PANEL. VERIFY THE LOCATION WITH PLUMBING PLAN PRIOR TO INSTALLATION.
17. J.BOX FOR ROLLER SHADE. VERIFY THE LOCATION WITH ARCHITECTURAL PLAN PRIOR TO INSTALLATION.
18. EMERGENCY SHUT-OFF BUTTON FOR GRILLS. VERIFY LOCATION WITH ARCHITECTURAL PLAN/OWNER PRIOR TO INSTALLATION.
19. VERIFY THE LOCATION AT SITE PRIOR TO INSTALLATION.
20. RECESSED J.BOX ROUTED FROM FLOOR THROUGH MILLWORK, COORDINATE WITH MILLWORK.
21. HARDWIRED DATA OUTLETS ARE OPTIONAL IN PUBLIC SPACES - WIRELESS INTERNET IS REQUIRED.
22. VERIFY WITH CASEWORK/HILTON FOR THE REQUIREMENTS OF POWER AND TEL/DATA OUTLETS AT FRONT DESK PRIOR TO INSTALLATION.
23. COORDINATE ELECTRICAL WITH FURNITURE PLACEMENT FLUSH MOUNTED FLOOR OUTLET BOX WITH BRUSHED ALUMINUM COVER PLATE.
24. FIELD VERIFICATION OF THE BEST LOCATION OF ELECTRICAL PANELS PRIOR TO INSTALLATION. THE LOCATION OF ELECTRICAL PANELS MUST COMPLY WITH 110.26 AND 240.24 OF THE NEC.
The scaled plan covers 41 labeled rooms/areas, including 11 guestrooms whose interiors are intentionally blank on E3.0 and require E4.0/E4.1 typical-room details.
Exactly 144 repeated circular wall-receptacle glyphs were isolated on the scaled plan: 53 duplex-outline, 21 quad-outline and 70 filled GFI-duplex signatures.
Exactly 56 visible black plan connection curves measure 729.4 drawing LF at 37.5 source pixels per foot. This is graphical centerline length, not installed routing or conductor/conduit quantity.
The Dry Storage Electrical Schedule has 19 printed rows: 18 active item definitions and one NOT USED row (31). Active QTY values total 19 EA because item 02 has QTY 2.
General Notes are numbered 1-7 and 9-19; number 8 is absent.
Keyed Notes 12 and 14 are explicitly NOT USED.
The fire/smoke-damper note requires Level 1 J-boxes on L1.D-20 using 2#12 in 1/2-inch conduit but provides no damper/J-box quantity.
No installed WAP quantity is certifiable; General Note 19 requires owner/hotel-operator verification.
No installed pool equipment/wiring quantity beyond plotted E3.0 symbols is certifiable because pool work is separately permitted and assigned to the pool contractor.
SOURCE
E3.0 · Engineering PDF page 42
Issued 11.22.2024 · 1/8" = 1'-0" · PRINTED SCALE ONLY
POWER FIRST FLOOR PLAN
BROKEN CHAINS & PLAN ISSUES
I1 · Numbering-Gap
General Note 8 is missing; numbering jumps from 7 to 9.
I2 · Quantity-Gap
The fire/smoke-damper note requires J-boxes but gives no damper count or exact locations on E3.0.
I3 · Coordination
Guestroom interiors 101, 102, 103, 104, 105, 106, 107, 108, 110, 112 and 114 carry no individual power devices on E3.0. Counts must be linked once from E4.0/E4.1; blank rooms are not zero-scope rooms.
I4 · Coordination
WAP, card-reader/intercom and other low-voltage quantities are subject to owner/franchise verification; nine CR labels are plotted, but note-driven additions remain unknown.
I5 · Potential-Jurisdiction-Conflict
Pool Note 3 cites CPS Energy Standards Section 1708 although the project title block says Bradenton, Florida. Verify the intended utility/jurisdiction before applying the service-lateral statement.
I6 · Schedule-Blank
Dry-storage item 14 has a blank volts cell but an electrical comment calling for (120/208V) 3 wire + ground; item 37 has blank volts and amps cells while its comment lists two 120V loads at 180W and 1400W.
I7 · Optional-Future-Scope
Dry-storage items 20 and 29 are marked OPTIONAL; item 25 is marked FUTURE. Carry separately from base installed scope.
I8 · Unresolved-Routing
Plan curves are diagrammatic centerlines. Installed route, verticals, concealed routing, conductor count, conduit size except where expressly noted, slack and fittings are not derivable from scale and remain null.
I9 · Source-Density
Several tel/data/TV, special-outlet, floor-outlet, J-box and disconnect glyphs overlap circuit leaders and keyed-note bubbles. Their exact subtype totals are not certified in this register rather than guessed; use the normalized plan region and keyed-note requirements for manual follow-up.
I10 · Generic-Cross-Reference
Multiple notes cite architectural, mechanical, plumbing, prototype, vendor, millwork or furniture plans without sheet/detail numbers, preventing closed-loop reference validation on E3.0 alone.
