C-3 · Existing Conditions Plan Bradenton Hotel and Restaurant
TAKEOFF / SOURCE COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT CIVIL NOTES
QUANTITIES / DIMENSIONS
No linear, area or volume quantity is reported unless supported by an explicit printed value. Graphic-only geometry remains open rather than estimated.
NOTES / REFERENCES

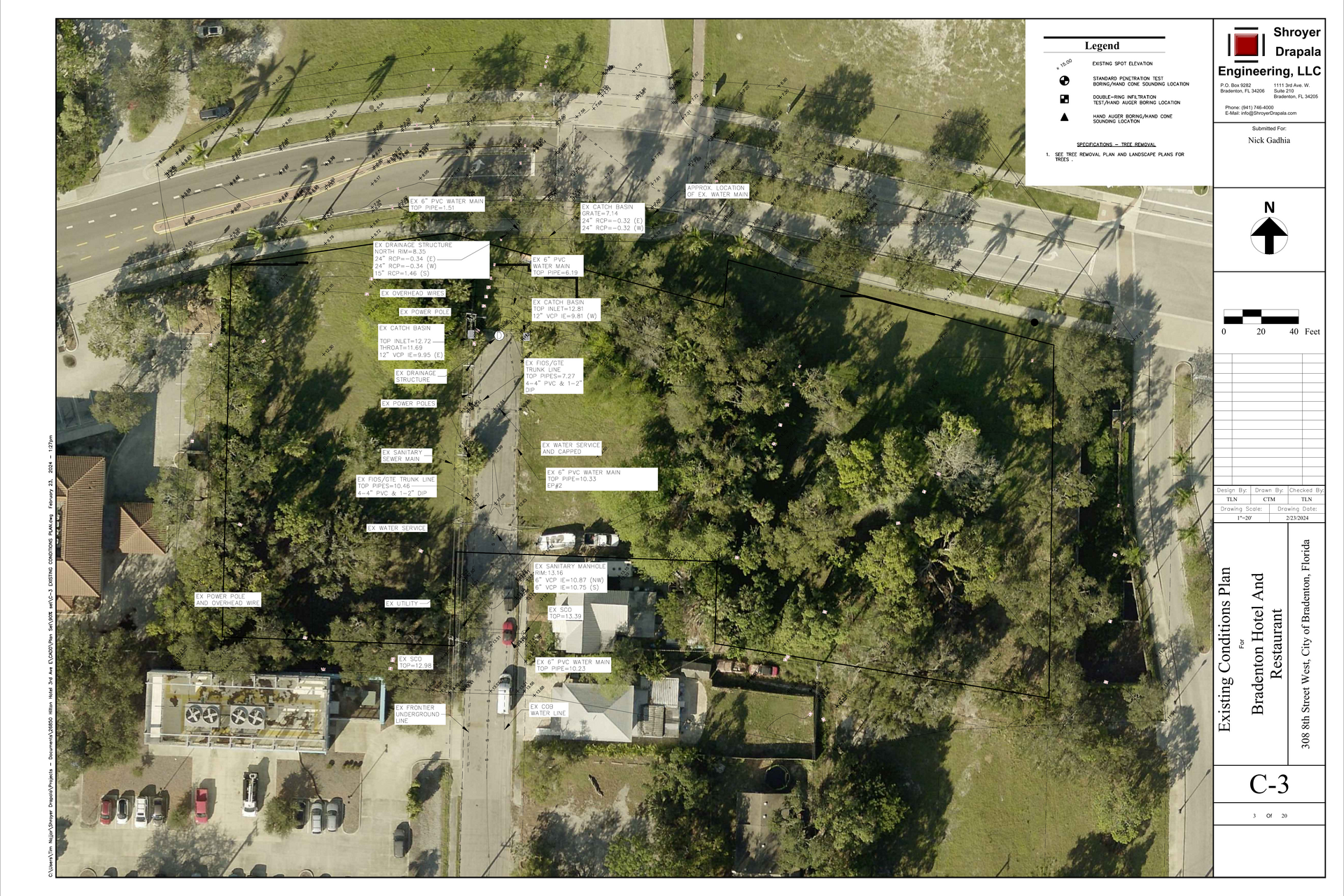

Existing aerial/survey base with property lines, spot elevations, test locations and 25 explicit utility/site callout regions. Existing features are reference-only; no proposed installation quantity is created.
SOURCE
C-3 · Civil PDF page 3
Issued 02.23.2024 · 1" = 20' · PRINTED SCALE ONLY
EXISTING CONDITIONS PLAN
BROKEN CHAINS & PLAN ISSUES
CIV-ADDR · Project address requires reconciliation
This civil set identifies 308 8th Street West. The architectural/MEP takeoff set identifies 716 3rd Avenue Drive West. The layouts appear to describe the same development, but the governing parcel/address has not been confirmed.
C3-02 · Utility locations are existing-condition references
The sheet shows approximate/record and surveyed features. Confirm field locations and elevations before demolition or utility work.
C3-03 · Tree quantities cannot be taken from the aerial
Tree removal is expressly referred to separate landscape/tree-removal plans.
C3-04 · No proposed installation quantities on C-3
This is an existing-conditions sheet. Existing lines and objects are not converted into new-work quantities.
C3-05 · Dense spot-elevation field is reference-only
Survey spot elevations remain visible in the source but are not summed or treated as grading quantities.
