E4.1 · Electrical Typical Guestroom Plan Home2 Suites · Bradenton
TAKEOFF / ACTUAL PLAN COUNTS
Select a type to isolate its numbered source marks.
IMPORTANT HVAC / ELECTRICAL NOTES
QUANTITIES / DIMENSIONS
Select a row to show its exact source basis.
ASSEMBLIES / ACCESSORIES
Two one-bedroom alternatives
King One Bed / HI King One Bed and King One Bed Accessible are reference definitions only; room application is not printed here.
Panel B (typical)
All circuits 1-18, panel characteristics and notes remain in the full audit. The second plotted PTAC pair conflicts with the schedule's spare circuit 11.
HVAC and controls
Two each of EF-7, thermostat, WAP, relay, panel and doorbell plus controls/J-boxes/communications are source-marked without multiplication.
NOTES / REFERENCES
1. REFER TO NOTE #1 ON PACKAGED TERMINAL AIR CONDITIONER SCHEDULES ON M1.1 FOR INSTALLING ELECTRICAL OUTLETS FOR PTACs.
2. FOR HOME RUNS (FROM UNITS) 100 FT OR MORE, THE ELECTRICAL CONTRACTOR HAS TO CHECK THE VOLTAGE DROP AND SELECT THE SUITABLE CABLES SIZE TO COMPLY WITH THE MAXIMUM ALLOWED VOLTAGE DROP FOR THE FEEDER CONDUCTOR (3%). THE MAXIMUM COMBINED VOLTAGE DROP ON BOTH INSTALLED FEEDER CONDUCTORS AND BRANCH CIRCUIT CONDUCTORS TO THE FARTHEST CONNECTED LOAD OR OUTLET SHALL NOT EXCEED 5 PERCENT.
3. GUEST ROOM ELECTRICAL OUTLETS NEED TO BE MOUNTED HIGHER BEHIND DESKS, NIGHTSTANDS, ETC...
4. PROVIDE A CAT 6 CABLE WITH RJ45 JACK AT ALL DESKS & TELEVISIONS FOR FUTURE IPTV INSTALLATIONS.
5. ALL NONLOCKING TYPE 15-AMP AND 20-AMP RECEPTACLES LOCATED IN GUESTROOMS AND GUEST SUITES SHALL BE LISTED TAMPER-RESISTANT RECEPTACLES. ARTICLE 406.12 N.E.C.
6. THE WIRELESS ACCESS POINT (WAP) MUST BE INSTALLED BELOW THE DESK. THE EXACT NUMBER OF ROOMS REQUIRING A WAP WILL BE DETERMINED AFTER OWNERSHIP COORDINATES WITH A REGIONALLY APPROVED SOLUTION PROVIDER.
7. THE CONTRACTOR SHALL VERIFY EXACT LOCATION OF ALL EQUIPMENTS WITH ARCHITECTURAL/ID PLAN PRIOR TO INSTALLATION.
8. RECEPTACLES FOR TV SHALL BE UNSWITCHED BY OCCUPANCY SENSOR.
9. PROVIDE ARC FAULT BREAKER FOR BRANCH CIRCUITS TO COMPLY WITH ARTICLE 210.12(C).
10. MAXIMUM BOX SIZE IN A FIRE-RATED WALL SHALL BE 4” X 4” SQUARE. DO NOT INSTALL BOXES BACK TO BACK IN WALLS. IN NONFIRE-RATED AND NONACOUSTIC-RATED WALLS, PROVIDE NOT LESS THAN 6 INCHES (150-MM) HORIZONTAL SEPARATION BETWEEN BOXES INSTALLED IN OPPOSITE SIDES OF WALL. PROVIDE NOT LESS THAN 24 INCHES (610-MM) HORIZONTAL SEPARATION BETWEEN BOXES INSTALLED IN OPPOSITE SIDES OF FIRE-RATED AND ACOUSTIC-RATED WALLS. IN THE CASE IF THE BACK TO BACK BOXES MUST BE INSTALLED, THE CONTRACTOR SHALL FURNISH AND INSTALL AN APPROPRIATE FIRE PUTTY PADS.
11. ALL GUEST BATHROOM LIGHTS MUST BE APPROVED FOR A DAMP LOCATION.
12. THE CONTRACTOR SHALL COORDINATE EXACT NUMBER OF BOXES WITH ACTUAL REQUIREMENTS.
13. SEPARATE BOXES FOR CAT6 AND CO-AXIAL CABLE BEHIND TV.
14. ALL POWER CORDS MUST BE HARD WIRED DIRECTLY TO A JUNCTION BOX AND CONCEALED. EXPOSED WIRES, CONDUIT, RACEWAYS OR SURFACE MOUNTED ELECTRICAL BOXES ARE NOT PERMITTED.
15. THE RECEPTACLE OUTLETS IN HOTEL GUESTROOM/GUEST SUITE UNITS MUST BE INSTALLED IN ACCORDANCE WITH SECTION 210.52.
16. PROVIDE ELECTRICAL MOCK-UP OF ONE ROOM OF EACH GUEST ROOM TYPE FOR OWNER, FRANCHISE, INTERIOR DESIGNER, AND CITY INSPECTOR APPROVAL PRIOR TO PROCEEDING WITH ALL ROOMS.
17. THE CONTRACTOR HAS TO DOUBLE-CHECK THE NUMBERS AND POSITION OF THE HEARING-IMPAIRED AND ADA /ACCESSIBLE ROOMS ON THE ARCHITECTURAL PLANS. THE CONTRACTOR SHALL INSTALL ALL ELECTRICAL DEVICES ACCORDING TO THE FRANCHISE AND CODE REQUIREMENTS.
18. ADDITIONAL OCCUPANCY SENSORS ARE REQUIRED FOR THE GUESTROOMS IN WHICH THE DETECTION RANGE OF THE THERMOSTAT – WITH BUILT-IN OCCUPANCY SENSOR – IS NOT SUFFICIENT TO DETECT THE GUESTS STAYING IN THE ROOM. PLEASE VERIFY THE LOCATION AND QUANTITY OF THE OCCUPANCY SENSORS WITH THE MANUFACTURER PRIOR TO INSTALLATION.
19. VERIFY WITH THE FRANCHISE/OWNER IF THERE IS A REQUIREMENT FOR AN LED NIGHTLIGHT FOR THE BATHROOM.
20. THE CONTRACTOR MUST VERIFY WITH THE FRANCHISE (OR PROTOTYPE PLANS), I.D, AND THE OWNER TO PROVIDE POWER FOR ROLLING SHADES OF WINDOWS IF REQUIRED.
21. ELECTRICAL PANELS IN GUESTROOMS ARE LOCKABLE TO PREVENT GUESTS FROM ACCESSING THE BREAKERS.
22. THE PANELBOARD SHALL BE LOCKABLE AND ACCESSIBLE TO QUALIFIED PERSONS ONLY. FIELD VERIFICATION OF THE BEST LOCATION OF ELECTRICAL PANELS PRIOR TO INSTALLATION. THE LOCATION OF ELECTRICAL PANELS MUST COMPLY WITH 110.26 AND 240.24 OF THE NEC.
1. J.BOX FOR GARBAGE DISPOSAL.
2. LED NIGHTLIGHT INTEGRATED WITH EITHER LIGHT SWITCH OR OUTLET. VERIFY REQUIREMENT WITH HILTON PRIOR TO INSTALLATION.
3. QUAD. RECEPTACLE C/W 02 USB PORTS.
4. FOR MOTORIZED SHADES. ALTERNATE LOCATION FOR WINDOW SHADE CONCEALED J-BOX AT LOCATIONS WHERE WINDOW DOES NOT EXTEND TO CEILING. CONCEALED J-BOX COVER TO BE PAINTED TO MATCH ADJACENT WALL FINISH.
5. THERMOSTAT WITH BUILT-IN OCCUPANCY SENSOR. VERIFY WITH FRANCHISE FOR THE APPROVED MANUFACTURERS LIST AND ALL REQUIREMENTS PRIOR TO INSTALLATION. (SEE THE NOTE FOR GRMS IN THIS SHEET FOR DETAILS)
6. J.BOX FOR WALL HOOK SCONCE CONTRACTOR TO VERIFY J-BOX TYPE TO ENSURE PROPER INSTALLATION.
7. ZETTLER RELAY #AZ2280 (OR APPROVED EQUAL) TO BE WIRED ABOVE ACCESSIBLE CEILING IN CORRIDOR. VERIFY LOCATION WITH ARCHITECTURAL PLAN & FRANCHISE PRIOR TO INSTALLATION.
8. DOORBELL HARDWIRED TO DOORBELL LIGHT-MOUNT @46 INCHES AFF TO CENTER BUTTON (COMMUNICATION FEATURES ROOMS ONLY).
9. RECEPTACLE FOR MICROWAVE. VERIFY LOCATION WITH ARCHITECTURAL PLAN/FRANCHISE PRIOR TO INSTALLATION.
10. RECEPTACLE FOR REFRIGERATOR. VERIFY LOCATION WITH ARCHITECTURAL PLAN/FRANCHISE PRIOR TO INSTALLATION.
11. RECEPTACLE FOR DISHWASHER. VERIFY LOCATION WITH ARCHITECTURAL PLAN/FRANCHISE PRIOR TO INSTALLATION.
12. SWITCHES CONTROLLING GARBAGE DISPOSAL AND UNDER CABINET LIGHTING GANGED WITH DUPLEX. VERIFY LOCATION WITH ARCHITECTURAL PLAN/FRANCHISE PRIOR TO INSTALLATION.
13. DOORBELL ON/OFF SWITCH (COMMUNICATION FEATURES ROOMS ONLY) SIGNAGE AS REQ'D.
14. J.BOX FOR WALL SCONCE. VERIFY LOCATION WITH ARCHITECTURAL/ID PLAN PRIOR TO INSTALLATION.
15. CEILING WIRELESS OCCUPANCY SENSOR SHALL BE COMPATIBLE & INTERACTABLE WITH THERMOSTAT. VERIFY THE LOCATION WITH ARCHITECTURAL PLAN & FRANCHISE PRIOR TO INSTALLATION.
16. WAP IN 3-GANG BOX MOUNTED VERTICALLY UNDER DESK. MAINTAIN 6 INCHES BETWEEN ALL BOXES, TYP ALL GUESTROOMS. COORDINATE WAP LOCATION WITH CASEGOODS TO AVOID CONFLICTS. VISIT CONNECTEDROOM.HILTON.COM FOR CURRENT WIRELESS INTERNET REQ'S AND LIST OF APPROVED INTEGRATORS.
17. EACH CABLE MUST HOMERUN BETWEEN THE GUESTROOM AND THE IDF ON EACH FLOOR. VISIT CONNECTEDROOM.HILTON.COM FOR CURRENT REQUIREMENTS AND OPTIONS.
18. OPTION WIRED DATA CONNECTION FOR GUEST USE: A. ADD CAT6 RJ-45 CABLE JACK AND PATCH CORD THROUGH DESKTOP GROMMET - OR - B. PATCH CORD FROM WAP PORT THROUGH DESKTOP GROMMET.
19. PROVIDE OUTLET FOR UNDERCABINET LIGHTING BY OTHERS. VERIFY LOCATION WITH ARCHITECTURAL/ID PLAN PRIOR TO INSTALLATION.
20. TV CONNECTIONS FOR FREE-TO-GUEST CONTENT: A. NO SMART TV: COAX CABLE BEHIND TV. CAT6 RJ-45 JACK BEHIND TV, RUN IN SMURF TUBE IN WALL TO WAP UNDER DESK. PATCH CORD TO EDGE CONTROLLER FOR CONNECTED ROOM. MIN. 6 INCH CLEARANCE FROM WALL BOXES. B. SMART TV-INTERNET PROTOCOL TELEVISION COAX NOT REQ'D. CAT6 RJ-45 JACK BEHIND TV RUN IN SMURF TUBE IN WALL TO WAP UNDER DESK. PATCH CORD TO EDGE CONTROLLER FOR CONNECTED ROOM. CAT6 RJ-45 JACK BEHIND TV IN ONE-BEDROOM TV. MIN. 6 INCH CLEARANCE FROM WALL BOXES. VISIT HILTONHDTV.COM FOR ADDITIONAL INFORMATION.
21. SWITCHES CONTROLLING POWERED ROLLER SHADES - REFER TO FFE MANUAL.
22. DEDICATED CIRCUIT FOR INDUCTION BURNER. VERIFY LOCATION AND ELEVATION WITH ARCHITECTURAL/ID PLAN PRIOR TO INSTALLATION.
23. SWITCH CONTROLLING GARBAGE DISPOSAL GANGED WITH DUPLEX. VERIFY LOCATION WITH ARCHITECTURAL PLAN/FRANCHISE PRIOR TO INSTALLATION.
1. THE ELECTRICAL CONTRACTOR SHALL COORDINATE WITH THE FIRE ALARM PLAN/FIRE ALARM CONTRACTOR TO PROVIDE POWER SUPPLY FOR GUESTROOM FIRE ALARM DEVICES WHERE REQUIRED.
2. VERIFY WITH THE OWNER FOR THE SCOPE OF WORK.
SOURCE

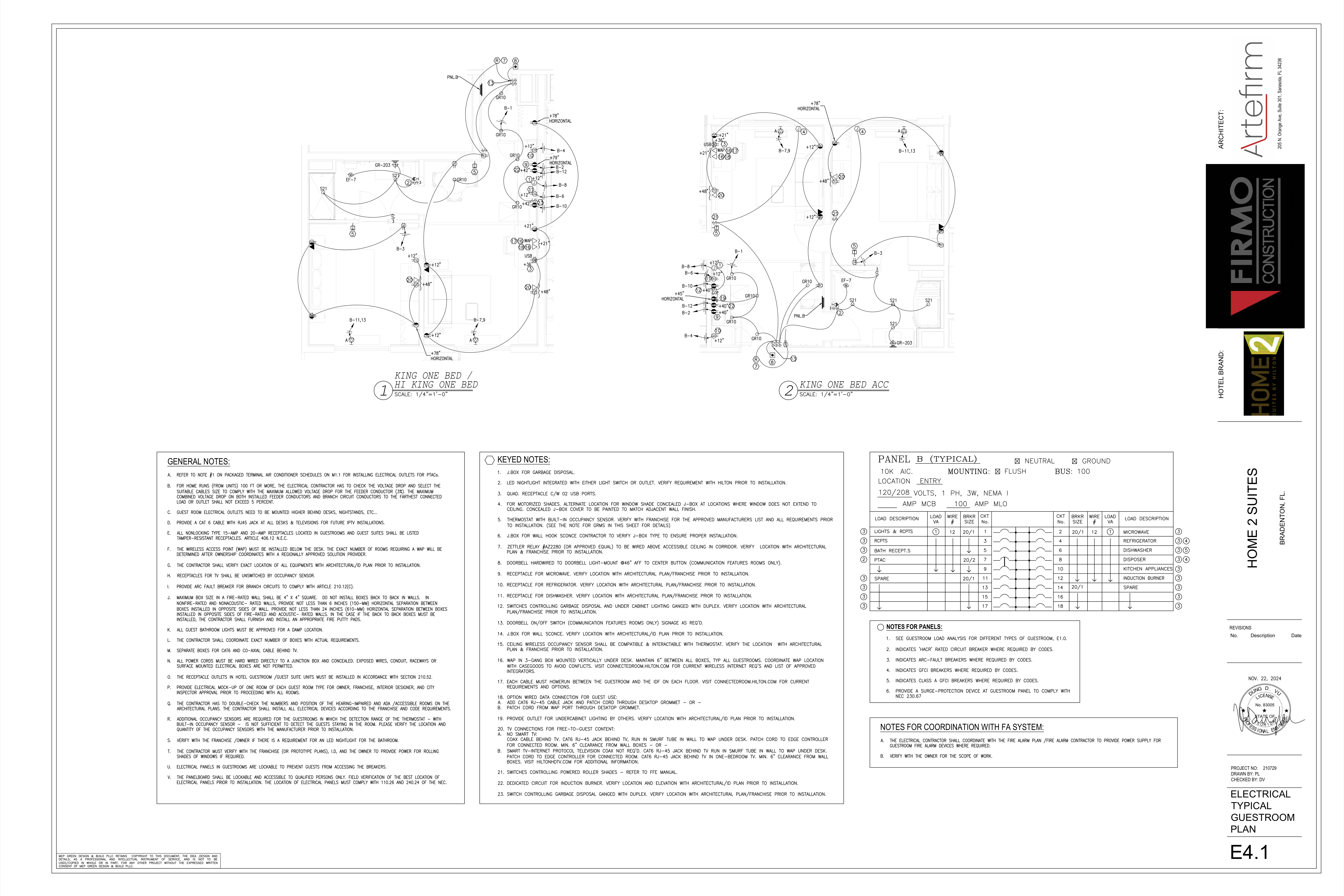

E4.1 · Engineering PDF page 49
Issued 11.22.2024 · 1/4" = 1'-0" · PRINTED SCALE ONLY · TYPICAL REF
ELECTRICAL TYPICAL GUESTROOM PLAN
BROKEN CHAINS & PLAN ISSUES
1 · Blocking For Installed Takeoff
Both views are typical/detail reference definitions. No explicit room-to-detail mapping is provided on E4.1, so no plotted occurrence was multiplied into an installed quantity.
2 · Measurement Limitation
The 1/4 inch = 1 foot scale is printed and legible, but neither view provides an independent dimension check. The saved 388.3004 LF is drawing-path geometry only, not an installed routing quantity.
3 · Blocking For Wire Quantity
No explicit installed route, homerun distance, vertical drop/rise, conductor count, or conduit routing is proved by the detail. Installed route/conduit/conductor/vertical LF remain null.
4 · Classification Limitation
Thirty-eight circular power/control symbols are countable and have exact vector centers, but their complete subtype legend is not present on this sheet. They are preserved as certified occurrences with subtype unresolved rather than guessed.
5 · Coordination
General Note F leaves the exact number of rooms requiring WAPs to owner/provider coordination; the two WAP markers are detail references only.
6 · Coordination
General Note R makes additional occupancy sensors conditional on thermostat detection range and manufacturer verification.
7 · Coordination
General Note S and Keyed Note 2 require franchise/owner verification for bathroom LED nightlights.
8 · Coordination
General Note T and Keyed Notes 4 and 21 make powered roller-shade work conditional on franchise/prototype/ID/owner and FFE requirements.
9 · Coordination
Fire-alarm power supply and scope are expressly dependent on the fire alarm plan/contractor and owner.
10 · Cross Sheet
M1.1 PTAC outlet requirements and E1.0 guestroom load analysis are referenced but cannot be certified from E4.1 alone.
11 · Panel Data
Panel B's LOAD VA cells contain circled/ditto symbols rather than explicit numeric VA values. Those symbols are preserved literally and no arithmetic panel load is inferred.
12 · Reference Chain
No visibly broken detail number was found on E4.1; external references remain unresolved because their target sheets/manuals are outside this sheet-only audit.
